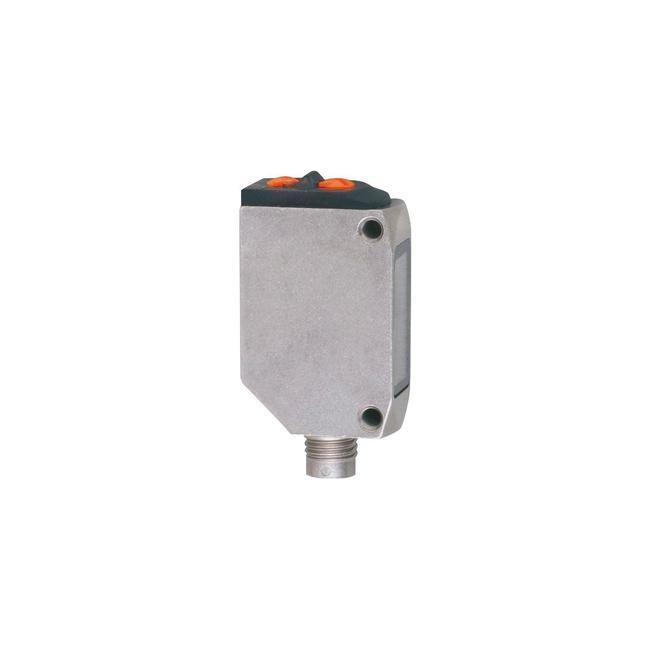

O6T306 ifm ⍾ O6T-FNKG/AS/3P

Diffuse reflection sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 633; Electrical design : NPN; Output function : light-on/dark-on mode; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Range [mm] : 5...500; (white paper 200 x 200 mm 90% remission); Range adjustable : yes; Max. light spot diameter [mm] : 15; Light spot dimensions refer to : at maximum range; Monitoring range final value [mm] : 100...500; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM; Lens material : PMMA; Lens alignment : side lens

Tipo

Fotocélulas

Conexión

Connector: 1 x M8

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

16; ((24 V)) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

35.7 g

Dimensiones

41.3 x 13 x 21 mm
