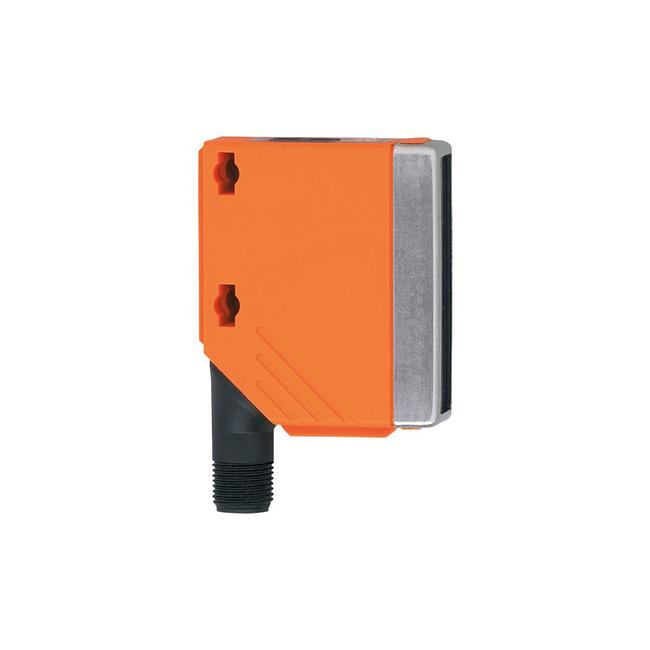

O5H501 ifm ⍾ O5H-FPKG/US100

Diffuse reflection sensor with background suppression; Operating voltage [V] : 10...36 DC; ("supply class 2" to cULus); Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 60...700; (white paper 200 x 200 mm 90% remission); Range on white object (90 % remission) [mm] : 60...700; Range on grey object (18 % remission) [mm] : 60...370; Range on black object (6 % remission) [mm] : 60...210; Range adjustable : yes; Max. light spot diameter [mm] : 35; Light spot dimensions refer to : at maximum range; Background suppression available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPU; Lens material : PMMA; Lens alignment : side lens; Teach function : yes; Electronic lock : yes

Tipo

Fotocélulas

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

30 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

67.5 g

Dimensiones

56 x 18.2 x 46.8 mm
