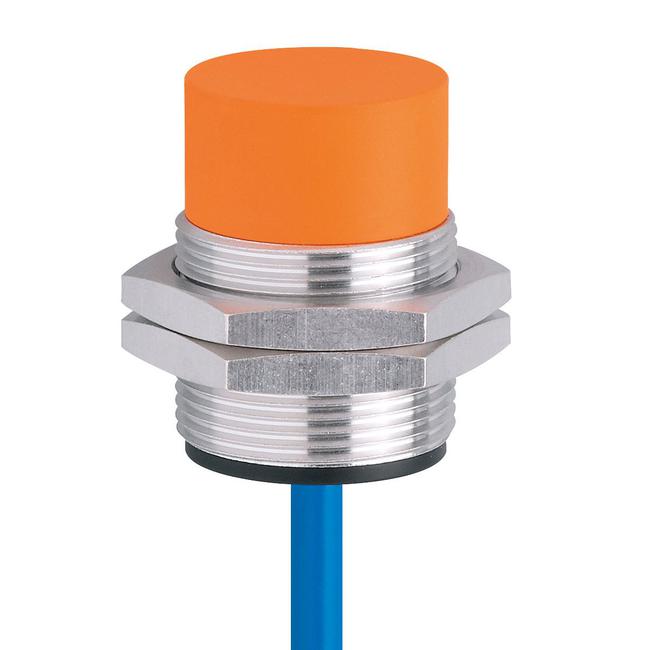

NI5004 ifm ⍾ IIA2015-N/1D/1G/2G

Inductive NAMUR sensor; Connection to switching amplifiers : yes; Switching amplifiers : connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW; Nominal voltage DC [V] : 8.2; (1kΩ); Supply voltage DC [V] : 7.5...30; (when used outside the hazardous area); Protection class : III; Electrical design : NAMUR; Output function : normally closed; Permanent current rating of switching output DC [mA] : 30; (when used outside the hazardous area); Switching frequency DC [Hz] : 200; Sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -20...80; Max. internal capacitance [nF] : 145; Max. internal inductance [µH] : 110; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : brass special coating; sensing face: PBT; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Cable: 2 m, PVC; 2 x 0.5 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 1; (disabled; conductive: > 2,1) mA

Suministro de voltaje

24 V

Mostrar

switching status: 4 x 90° LED, yellow

Grado de protección

IP 67

Peso

221.5 g

Dimensiones

M30 x 1.5 / L = 41 mm
