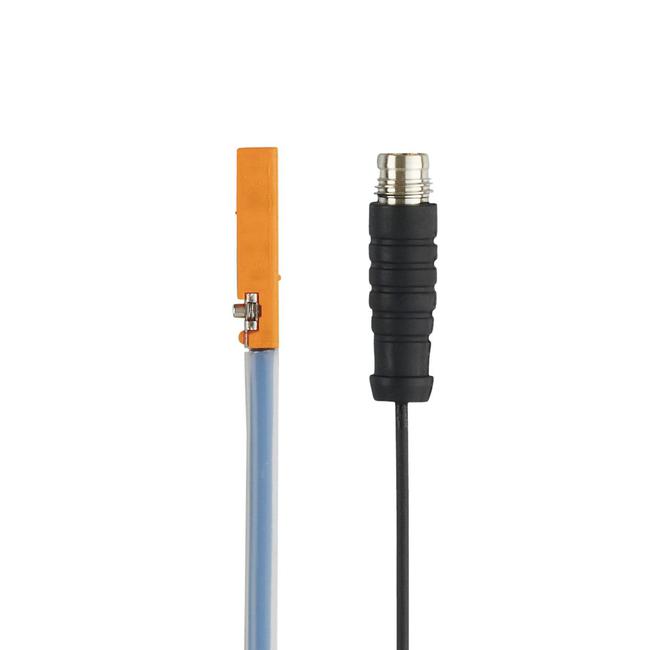

MK5353 ifm ⍾ MKC3028BBPKG/G/0,3M/ZH/AS

C-slot cylinder sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Max. power-on delay time [ms] : 30; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 10000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Response sensitivity [mT] : 2.8; Travel speed [m/s] : > 10; Hysteresis [mm] : 1.5; Repeatability [mm] : < 0.2; Ambient temperature [°C] : -25...85; Mounting : flush mountable; Cylinder type : C-slot cylinders; Materials : housing: PA; fastening clamp: stainless steel; protective tube: PTFE

Tipo

Detectores para cilindros

Conexión

Connector: 1 x M8; Locking: snap-fit

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65; IP 67

Peso

12.2 g

Dimensiones

26.1 x 2.8 x 5.5 mm
