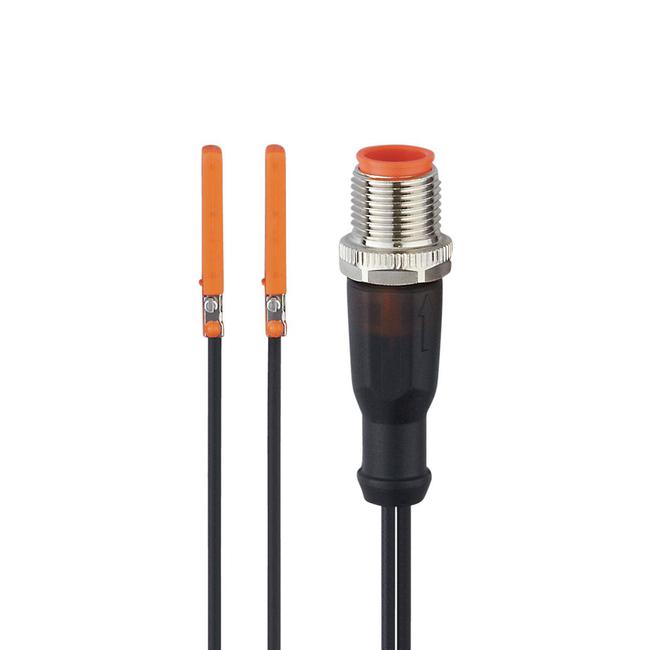

MK5351 ifm ⍾ MKC3020BBPKG/A/0,3/ZH/US/2X

C-slot cylinder sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Max. power-on delay time [ms] : 30; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 5000; Short-circuit protection : yes; Overload protection : yes; Response sensitivity [mT] : 2; Travel speed [m/s] : > 10; Hysteresis [mm] : 1; Repeatability [mm] : < 0.2; Ambient temperature [°C] : -25...85; Mounting : flush mountable; Cylinder type : C-slot cylinders; Materials : housing: PA; fastening clamp: stainless steel; Tightening torque [Nm] : < 0.24

Tipo

Detectores para cilindros

Conexión

Connector: 1 x M12; Locking: knurled nut, rotatable

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65; IP 67

Peso

21.7 g

Dimensiones

26.1 x 2.8 x 5.5 mm
