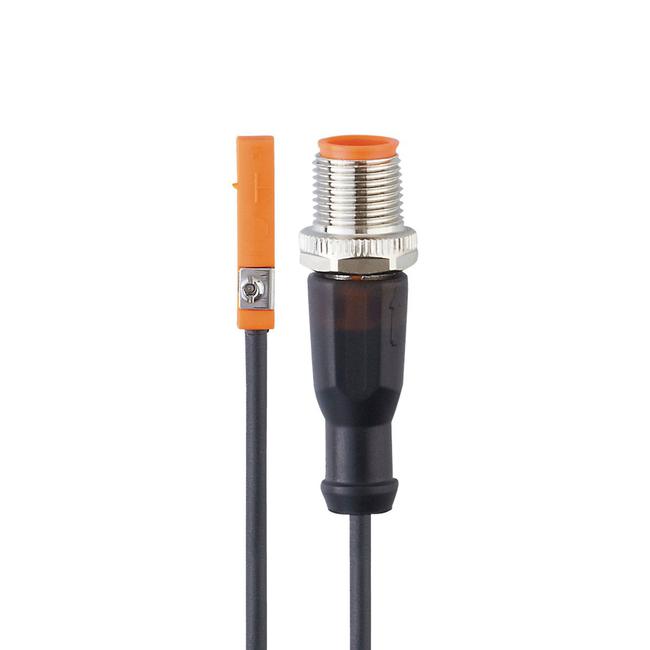

MK5108 ifm ⍾ MKT3028BBPKG/G/0,3M/ZH/US

T-slot cylinder sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Max. power-on delay time [ms] : 30; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 10000; Short-circuit protection : yes; Overload protection : yes; Response sensitivity [mT] : 2.8; Travel speed [m/s] : > 10; Hysteresis [mm] : < 1.5; Repeatability [mm] : < 0.2; Ambient temperature [°C] : -25...85; Mounting : flush mountable; Type of mounting : fastening clamp with combined slot / hexagon socket, width across flats 1.5; Cylinder type : T-slot cylinders; Materials : housing: PA; fastening clamp: stainless steel; Items supplied : rubber placeholder: 1 | Cable clip: 1

Tipo

Detectores para cilindros

Conexión

Connector: 1 x M12; Locking: knurled nut, rotatable

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65; IP 67

Peso

21 g

Dimensiones

25 x 5 x 6.5 mm
