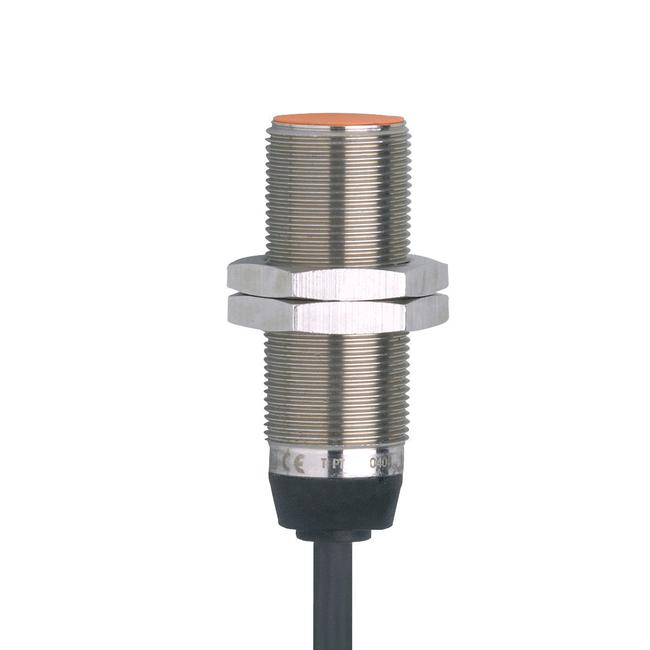

MGS202 ifm ⍾ MGB3070-APKG/ZH

Magnetic sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally closed; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 5000; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 70; (referred to magnet M 4.0); Response sensitivity [mT] : 0.8; Hysteresis [% of Sr] : 1...10; Ambient temperature [°C] : -25...75; Housing : threaded type; Thread designation : M18 x 1; Materials : housing: stainless steel; sensing face: PBT orange; lock nuts: brass; Items supplied : lock nuts: 2

Tipo

Detectores magnéticos

Conexión

Cable: 2 m, PUR; 3 x 0.34 mm²

Número de entradas/salidas

Number of digital outputs: 2

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

130.5 g

Dimensiones

M18 x 1 / L = 50 mm
