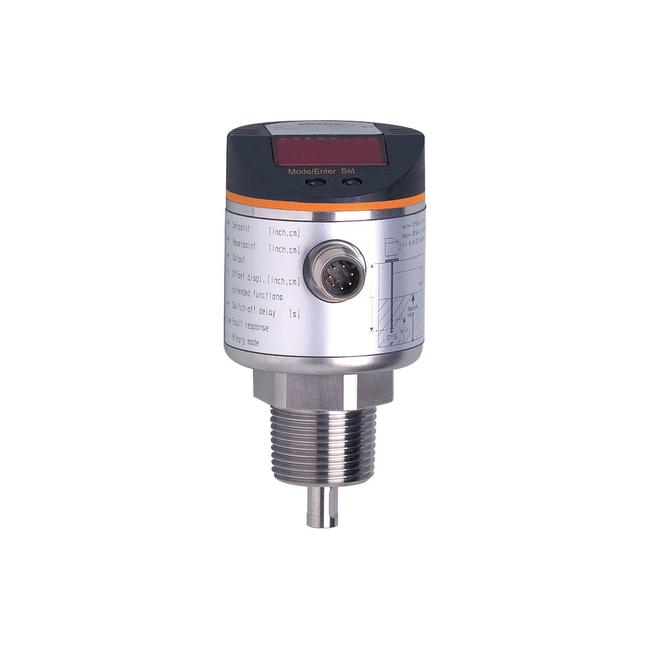

LR8300 ifm ⍾ LR0000B-BN34ASPKG/US

Continuous level sensor (guided wave radar); Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 3; Measuring principle : guided wave radar; Total number of outputs : 4; Output signal : switching signal; IO-Link; Electrical design : PNP; Number of digital outputs : 4; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Short-circuit protection : yes; Type of short-circuit protection : thermal, pulsed; Overload protection : yes; Probe length L [mm] : 100...1600; Active range A [mm] : L-40; Inactive range I1 / I2 [mm] : 30 / 10; Sampling rate [Hz] : 4; Set point SP [mm] : ≥ 15...L-30; Reset point rP [mm] : ≥ 10...L-35; In steps of [mm] : 5; Hysteresis [mm] : > 5; Repeatability [mm] : ± 5; Measuring error [mm] : ± 7; Offset error [mm] : 5; Resolution [mm] : 1; Temperature drift per 10 K : ± 0.2 %; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9 CDV; Profiles : no profile; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 4; Min. process cycle time [ms] : 2.3; Supported DeviceIDs : Type of operation: DeviceID | Default: 11; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -40...85; Materials : stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PBT; PC; PEI; TPE-V; Materials (wetted parts) : stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Process connection : 3/4" NPT

Tipo

Sensores de nivel

Conexión

Connector: 1 x M12; Contacts: gold-plated

Número de entradas/salidas

Number of digital outputs: 4

Consumo actual

< 30 mA

Suministro de voltaje

24 V

Mostrar

Display unit: 3 x LED, green | switching status: 4 x LED, yellow | level: alphanumeric display, 4-digit | parameter setting: alphanumeric display, 4-digit

Grado de protección

IP 67

Peso

408.5 g

Dimensiones

Ø 30 / L = 125.5 mm
