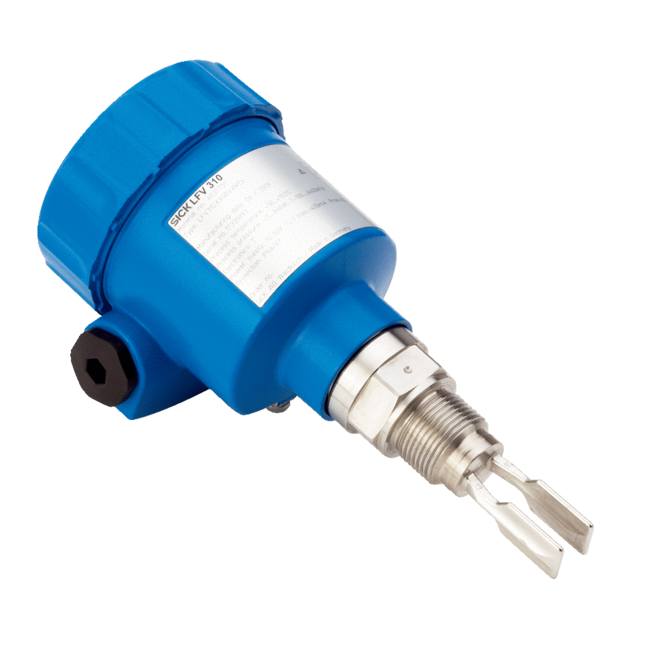

LFV310-DACCPXMTX SICK ⍾ 6062664 ⍾ LFV310DACCPXMTX

Features: Medium: Fluids; Measurement: Switch; Probe length: 66 mm; Process pressure: –1 bar ... 64 bar; Process temperature: –50 °C ... +150 °C, See safety notes for ATEX devices; Fill material density: 0.5 g/cm³ ... 2.5 g/cm³; ATEX approval: ATEX II 1/2G Ex db IIC T6...T2 Ga/Gb +WHG; Type examination: DEKRA 16 ATEX 0130 X; WHG approval: ✔; EHEDG approval: ✔; Performance: Accuracy of sensor element: ± 2 mm; Reproducibility: ≤ 1 mm; Viscosity: 0.1 mPas ... 10,000 mPas; Response time: 500 ms; Electronics: Residual ripple: ≤ 5 Vpp; Power consumption: < 10 mA; Initialization time: < 2 s; VDE protection class 2: ✔; Connection type: M20 x 1.5; Output signal: 1 x PNP/NPN; Supply voltage: Volt-free transistor output PNP/ NPN: 10 V DC ... 55 V DC; Hysteresis: 2 mm; Signal voltage HIGH: Uv –3 V; Signal voltage LOW: < 1 V; Output current: < 300 mA; Inductive load: 1 H; Capacitive load: 100 nF; Enclosure rating: IP66 / IP67; Temperature drift: 0,03 mm/K; Mechanics: Wetted parts: Stainless steel 316L (optional Ra ≤ 0.8 μm); Process connection: Triclamp 1'' (PN 16, 316L, Ra

Tipo

Level sensors
