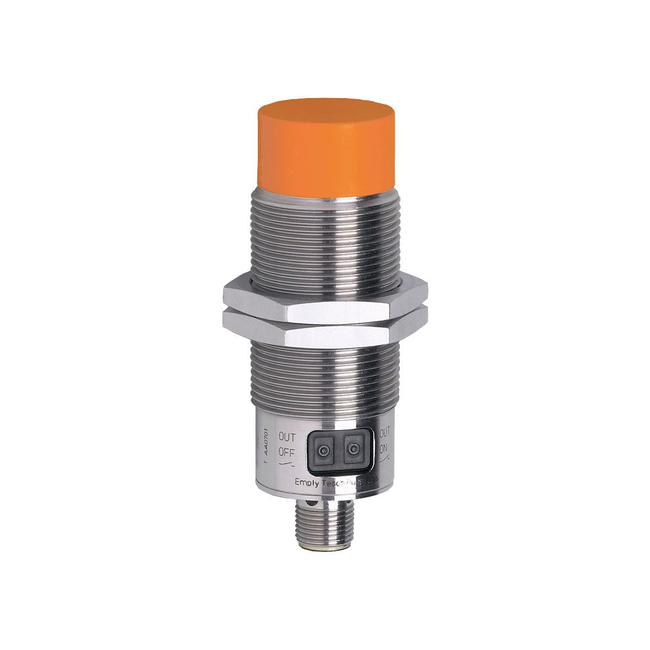

KI5086 ifm ⍾ KIA3150NFAKG/2T/US

Capacitive sensor; Operating voltage [V] : 10...30 DC; (10...36 DC (60 °C)); Protection class : III; Reverse polarity protection : yes; Measuring principle : capacitive; Electrical design : PNP/NPN; (automatic load detection PNP/NPN); Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 10; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 15; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -20...20; Communication interface : IO-Link; Transmission type : COM1 (4,8 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9 CDV; Profiles : Smart Sensor; SIO mode : yes; Min. process cycle time [ms] : 101; Supported DeviceIDs : Type of operation: DeviceID | Default: 388; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : housing: stainless steel (1.4404 / 316L); pushbuttons: TPE-U; cover: PBT; LED window: PEI; Teach function : yes; Electronic lock : yes; Items supplied : lock nuts: 2; Connector: 1 x M12

Tipo

Detectores capacitivos

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

18 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65; IP 67

Peso

118.8 g

Dimensiones

M30 x 1.5 / L = 90 mm
