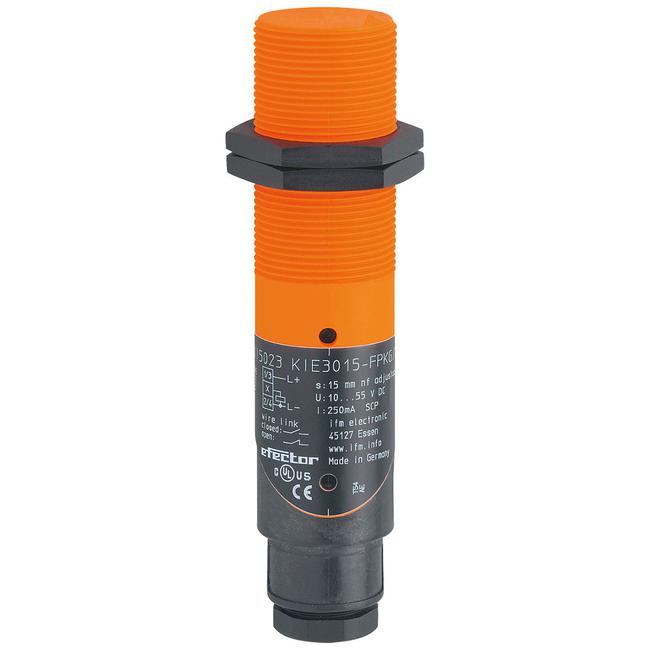

KI5023 ifm ⍾ KIE3015-FPKG/NI/55V

Capacitive sensor; Operating voltage [V] : 10...55 DC; ("supply class 2" to cULus); Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 40; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Operating distance [mm] : 0...12.1; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -25...70; Increased immunity : yes; (increased immunity to conducted radio frequency interference); Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : PBT; end cap: PC; Items supplied : lock nuts: 2 | screwdriver: 1

Tipo

Detectores capacitivos

Conexión

terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

14; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65

Peso

135 g

Dimensiones

M30 x 1.5 / L = 125 mm
