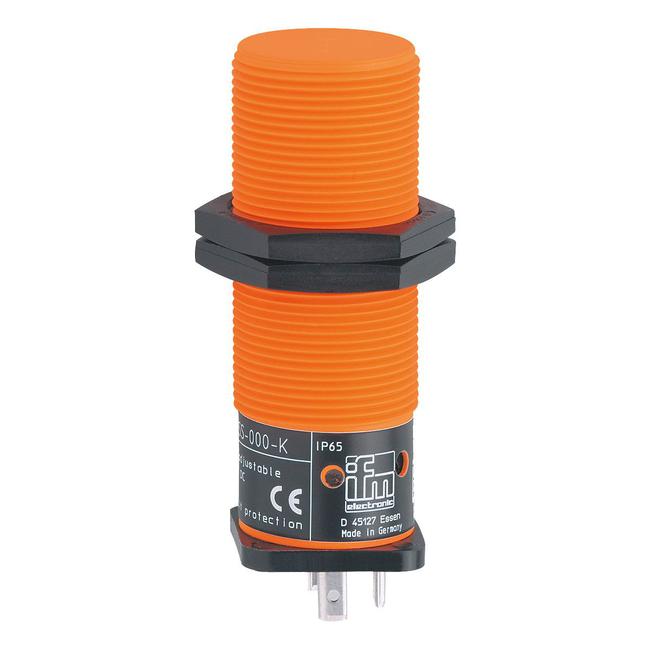

KI0040 ifm ⍾ KI-2015-FBOA/NI/SS-000-K

Capacitive sensor; Operating voltage [V] : 20...250 AC/DC; Reverse polarity protection : no; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 8; Max. voltage drop switching output AC [V] : 10; Minimum load current [mA] : 5; Max. leakage current [mA] : 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC); Permanent current rating of switching output AC [mA] : 200; (250 (...50 °C)); Permanent current rating of switching output DC [mA] : 200; (250 (...50 °C)); Short-time current rating of switching output [mA] : 1500; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 40; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Operating distance [mm] : 0...12.1; Correction factor : glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -20...70; Increased immunity : yes; (increased immunity to conducted radio frequency interference); Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : PBT; Required protection : miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Items supplied : lock nuts: 2 | screwdriver: 1

Tipo

Detectores capacitivos

Conexión

Connector: 1 x valve plug type A DIN (DIN EN 175301-803)

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 22 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65

Peso

104 g

Dimensiones

M30 x 1.5 / L = 92 mm
