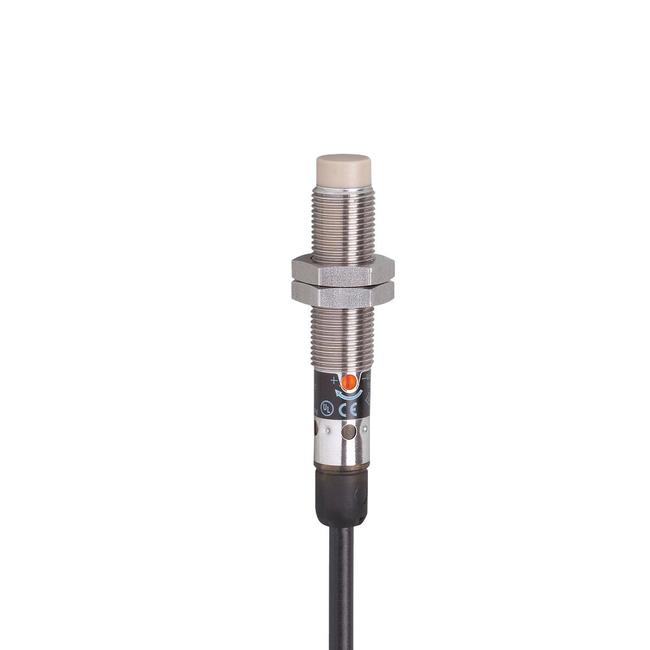

KF5015 ifm ⍾ KFA3080NBPKG

Capacitive sensor; Operating voltage [V] : 10...36 DC; ("supply class 2" according to UL); Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Max. leakage current [mA] : 0.5; Permanent current rating of switching output DC [mA] : 100; Short-time current rating of switching output [mA] : 100; Switching frequency DC [Hz] : 50; Short-circuit proof : yes; Overload protection : yes; Sensing range [mm] : 8; Sensing range adjustable : yes; Factory setting sensing range [mm] : 8; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -20...20; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M12 x 1; Materials : housing: stainless steel; cover: PEEK; Items supplied : lock nuts: 2

Tipo

Detectores capacitivos

Conexión

Cable: 2 m, PUR; 3 x 0.34 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 12 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 65

Peso

100 g

Dimensiones

M12 x 1 / L = 70 mm
