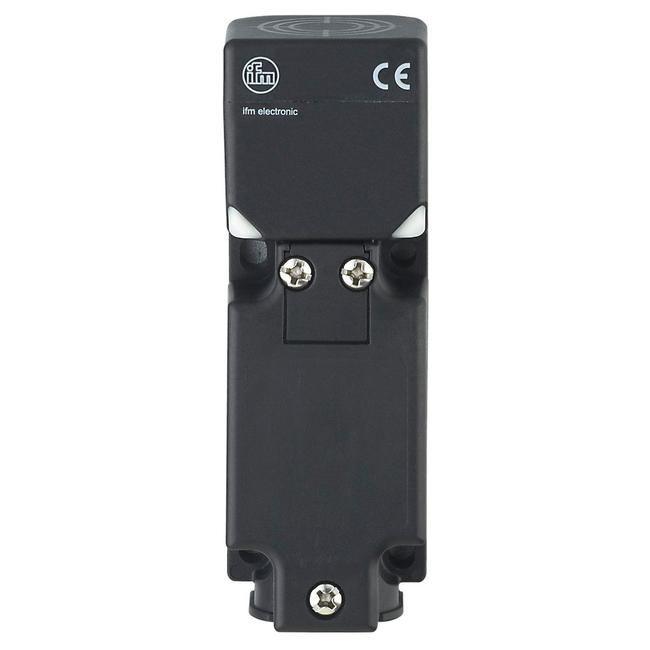

IV5004 ifm ⍾ IVE4020BCPKG

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : complementary; Max. voltage drop switching output DC [V] : 2; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 400; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 20; Real sensing range Sr [mm] : 20 ± 10 %; Operating distance [mm] : 0...16.2; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.3; Hysteresis [% of Sr] : 1...10; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...85; Housing : rectangular; Mounting : flush mountable; Materials : PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (1.4305 / 303)

Tipo

Detectores inductivos

Conexión

terminals: ...2.5 mm²; Cable gland: M20 X 1.5

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

20; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 68; IP 69K

Peso

250 g

Dimensiones

40 x 40 x 118 mm
