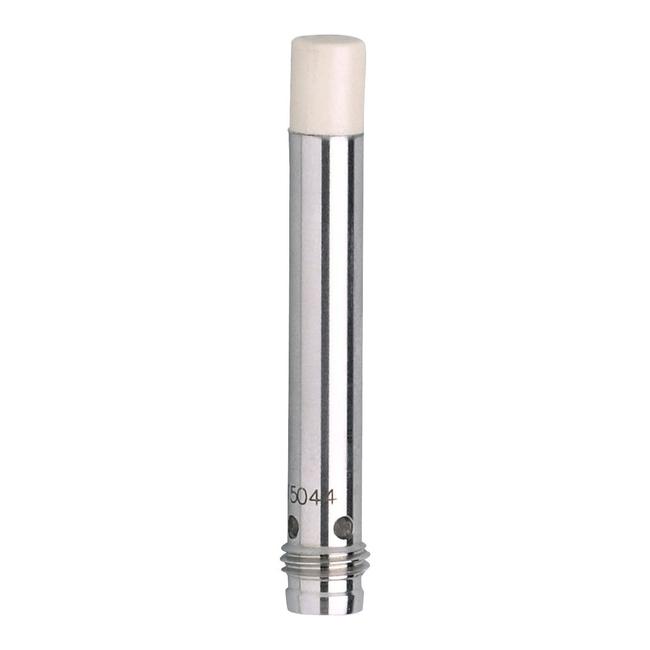

IT5044 ifm ⍾ ITB3004-BPKG/V4A/AS

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 750; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 4; Real sensing range Sr [mm] : 4 ± 10 %; Operating distance [mm] : 0...3.24; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : 0...60; Housing : cylindrical; Mounting : non-flush mountable; Materials : stainless steel (1.4404 / 316L); sensing face: LCP orange; LED window: PPSU; Items supplied : Mounting clamps: 1

Tipo

Detectores inductivos

Conexión

Connector: 1 x M8

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 4 x 90° LED, yellow

Grado de protección

IP 67; (with ifm socket duly screwed on: IP 67)

Peso

16.5 g

Dimensiones

Ø 6.5 / L = 50 mm
