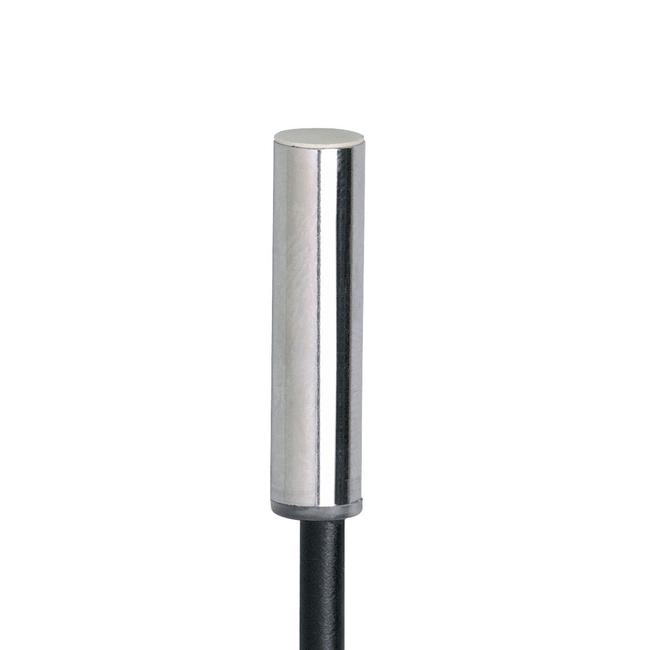

IT5042 ifm ⍾ ITB3002BBPKG/V4A/2M

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1500; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.62; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Ambient temperature [°C] : -20...70; Housing : cylindrical; Mounting : flush mountable; Materials : stainless steel; LCP; Items supplied : Mounting clamps: 1

Tipo

Detectores inductivos

Conexión

Cable: 2 m, PUR; 3 x 0.14 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 15 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

44.3 g

Dimensiones

Ø 6.5 / L = 27 mm
