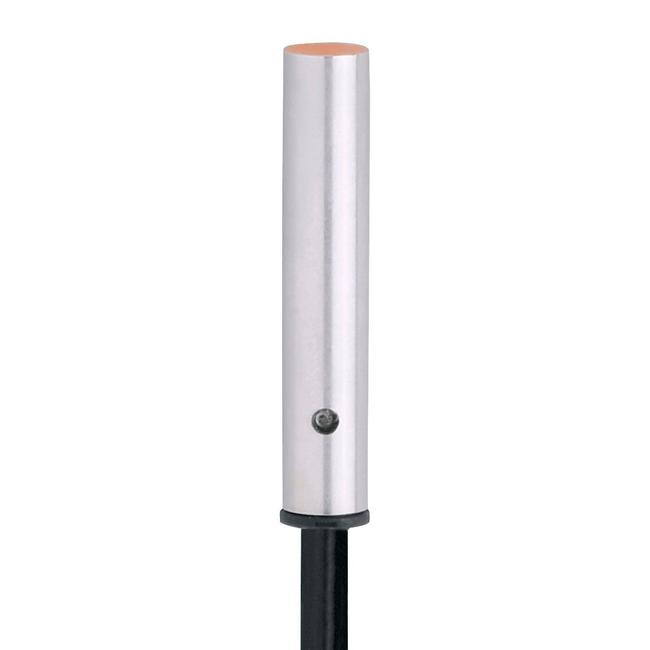

IT5009 ifm ⍾ ITB2001-AROG

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 3.5; Minimum load current [mA] : 4; Max. leakage current [mA] : 0.8; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 900; Short-circuit protection : no; Overload protection : no; Sensing range [mm] : 1; Real sensing range Sr [mm] : 1 ± 10 %; Operating distance [mm] : 0...0.81; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : cylindrical; Mounting : flush mountable; Materials : brass white bronze coated; PBT; Items supplied : Mounting clamps: 1

Tipo

Detectores inductivos

Conexión

Cable: 2 m, PVC; 2 x 0.14 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

15; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

45.7 g

Dimensiones

Ø 6.5 / L = 35 mm
