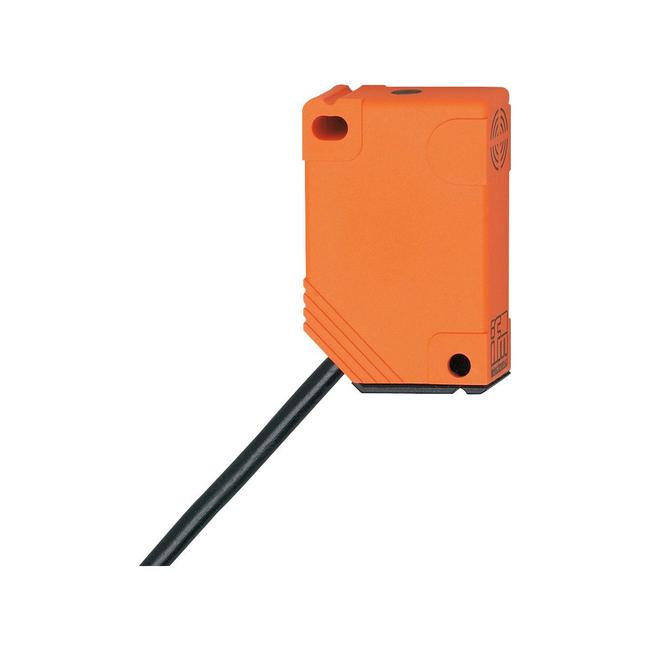

IN0098 ifm ⍾ IN-2004-ABOA

Inductive sensor; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Reverse polarity protection : no; Output function : normally open; Max. voltage drop switching output DC [V] : 6; Max. voltage drop switching output AC [V] : 6.7; Minimum load current [mA] : 5; Max. leakage current [mA] : 2.0 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC); Permanent current rating of switching output AC [mA] : 250; (350 (...50 °C)); Permanent current rating of switching output DC [mA] : 100; Short-time current rating of switching output [mA] : 2200; (50 ms / 1 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 50; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 4; Real sensing range Sr [mm] : 4 ± 10 %; Operating distance [mm] : 0...3.25; Correction factor : steel: 1 / stainless steel: 0.9 / brass: 0.6 / aluminium: 0.5 / copper: 0.4; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : rectangular; Mounting : non-flush mountable; Materials : PBT

Tipo

Detectores inductivos

Conexión

Cable: 2 m, PVC; 2 x 0.5 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

105.7 g

Dimensiones

40 x 12 x 26 mm
