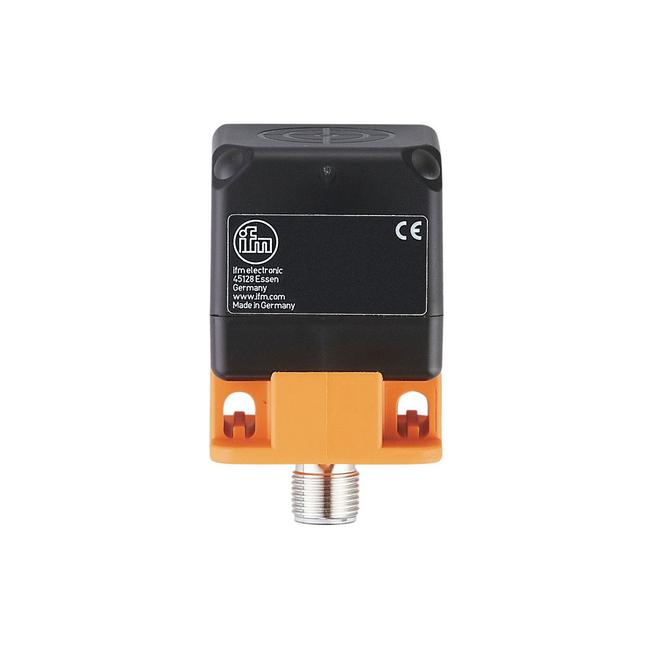

IM5127 ifm ⍾ IMC2015-ARKG/UP/US-100-DRS

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 2; Max. leakage current [mA] : 0.8; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Operating distance [mm] : 0...12.1; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : rectangular; Sensing face : 5 positions selectable; Mounting : flush mountable; Materials : PA; Connector: 1 x M12; Locking: locking, rotatable

Tipo

Detectores inductivos

Conexión

Connector: 1 x M12; Locking: locking, rotatable, stainless steel (1.4404 / 316L)

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

143.5 g

Dimensiones

40 x 40 x 54 mm
