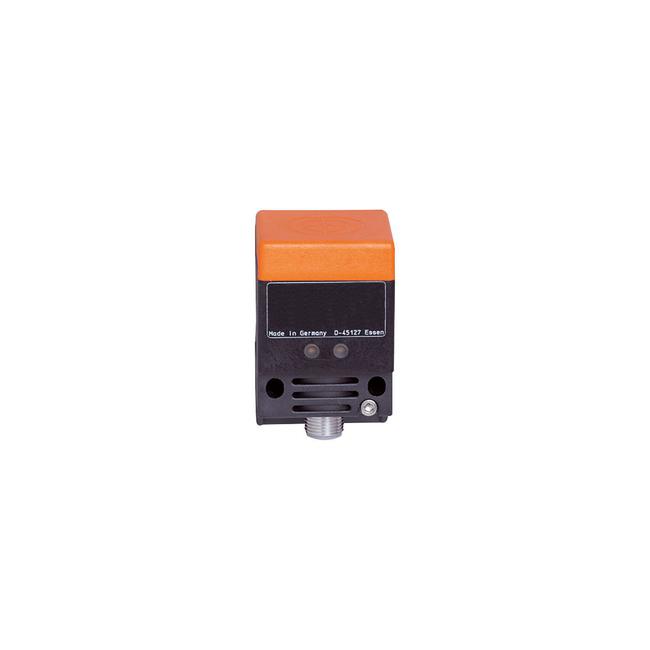

IM0057 ifm ⍾ IMC2035-BBOA/SL/LS-100AK

Inductive sensor; Operating voltage [V] : 20...250 AC/DC; Protection class : I; Reverse polarity protection : no; Output function : normally closed; Max. voltage drop switching output DC [V] : 6; Max. voltage drop switching output AC [V] : 6.5; Minimum load current [mA] : 1.9; Max. leakage current [mA] : 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC); Permanent current rating of switching output AC [mA] : 250; (350 (...50 °C)); Permanent current rating of switching output DC [mA] : 100; Short-time current rating of switching output [mA] : 2200; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 20; Switching frequency DC [Hz] : 50; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 35; Operating distance [mm] : 0...28.3; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Ambient temperature [°C] : -25...70; Housing : rectangular; Mounting : non-flush mountable; Materials : housing: PPE; sensing face: PPE orange; end cap: PPS; clamp: PPS black; screw: steel galvanised; Required protection : miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Connector: 1 x 1/2"; Locking: brass, white bronze coated

Tipo

Detectores inductivos

Conexión

terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

15; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

164 g

Dimensiones

40 x 40 x 66 mm
