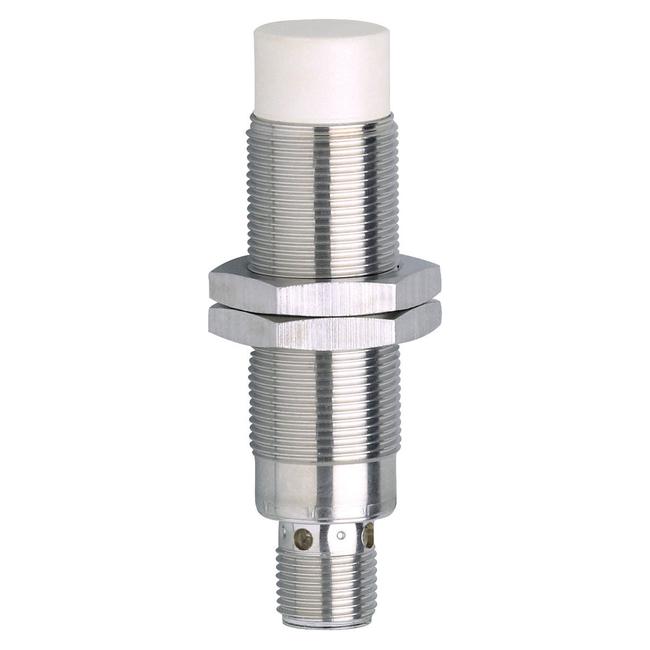

IGC223 ifm ⍾ IGK2012-FRKG/M/2LED/US-104-IRF

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 4; Max. leakage current [mA] : 1; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 300; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 12; Real sensing range Sr [mm] : 12 ± 10 %; Operating distance [mm] : 0...9.7; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : housing: brass white bronze coated; sensing face: LCP uncoloured; Optical setting aid : yes; Items supplied : lock nuts: 2; Connector: 1 x M12; Contacts: gold-plated

Tipo

Detectores inductivos

Conexión

Connector: 1 x M12; Contacts: gold-plated

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 4 x 90° LED, yellow | setting aid: 1 x LED, red

Grado de protección

IP 68; ("Coolant")

Peso

52.8 g

Dimensiones

M18 x 1 / L = 70 mm
