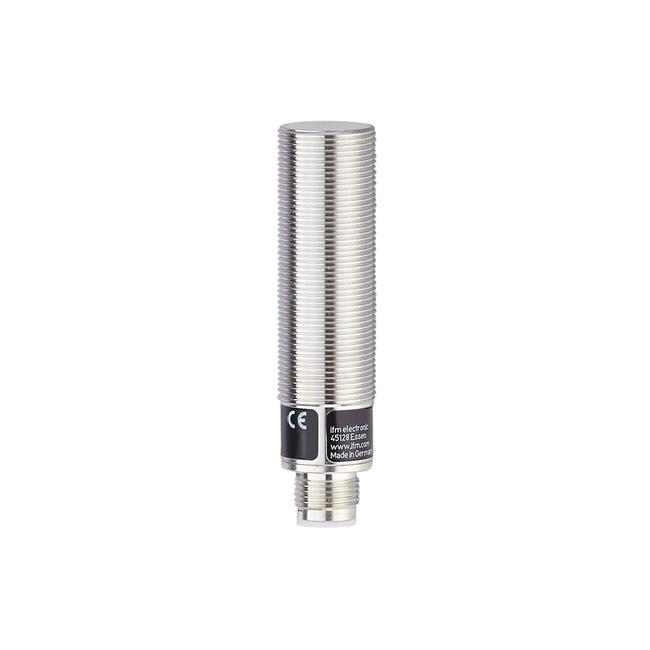

IG5958 ifm ⍾ IGK2008BFRKG/US-100-IRF

Inductive sensor; Operating voltage [V] : 10...55 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 4; Max. leakage current [mA] : 0.8; Permanent current rating of switching output DC [mA] : 400; Switching frequency DC [Hz] : 250; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 8; Operating distance [mm] : 0...6.48; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : 1...15; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M18 x 1; Materials : brass white bronze coated; CO-PC; Items supplied : lock nuts: 2; Connector: 1 x M12

Tipo

Detectores inductivos

Conexión

Cable: 20 m, PVC; 3 x 0.5 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

15; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

61 g

Dimensiones

M18 x 1 / L = 72 mm
