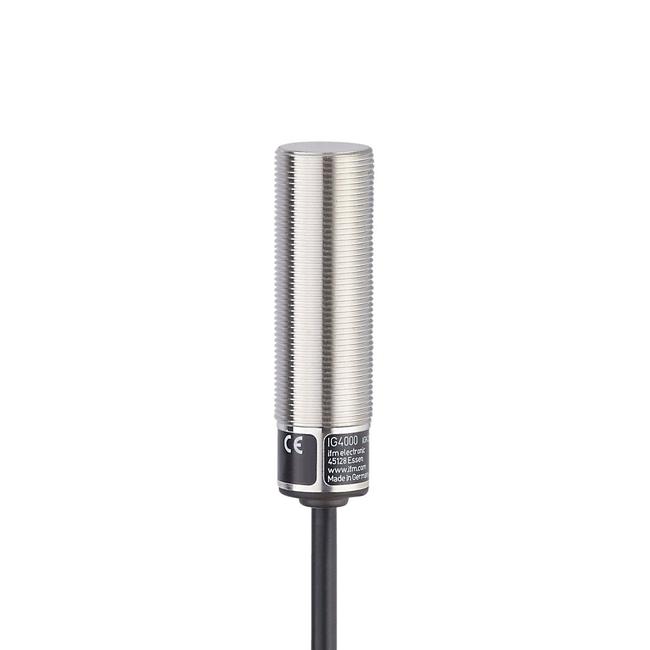

IG4000 ifm ⍾ IGK2008BABOA/MONOALTERNANCE RT

Inductive sensor; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Reverse polarity protection : no; Output function : normally open; Max. voltage drop switching output DC [V] : 6.5; Max. voltage drop switching output AC [V] : 6.5; Minimum load current [mA] : 6; Max. leakage current [mA] : 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC); Permanent current rating of switching output AC [mA] : 250; (350 (...50 °C)); Permanent current rating of switching output DC [mA] : 100; Short-time current rating of switching output [mA] : 2200; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 20; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 8; Real sensing range Sr [mm] : 8 ± 10 %; Operating distance [mm] : 0...6.5; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M18 x 1; Materials : brass white bronze coated; PBT; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Cable: 6 m, PUR; 2 x 0.34 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, red

Grado de protección

IP 67

Peso

291.5 g

Dimensiones

M18 x 1 mm
