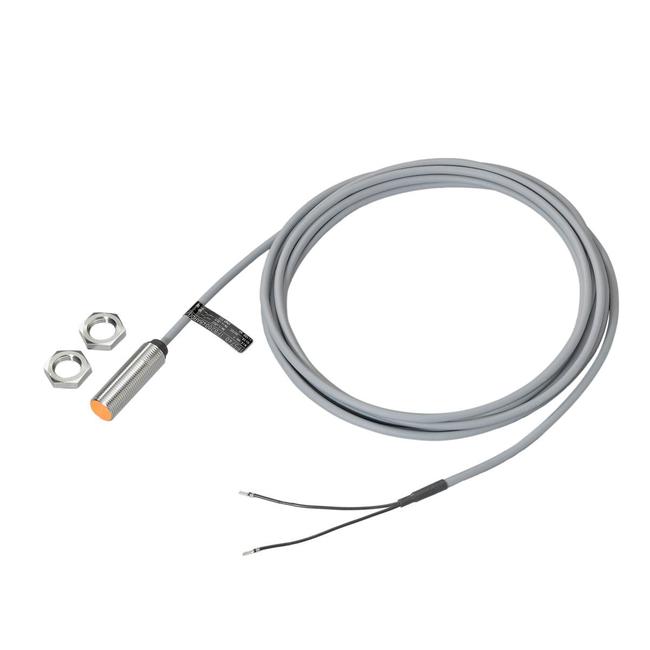

IF5829 ifm ⍾ IFB2004BAROG/UP/2LED/6M/PH

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 5; Minimum load current [mA] : 5; Max. leakage current [mA] : 1; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 110; Short-circuit protection : no; Overload protection : no; Sensing range [mm] : 4; Real sensing range Sr [mm] : 4 ± 10 %; Operating distance [mm] : 0...3.25; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : brass white bronze coated; PC; Optical setting aid : yes; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Cable: 6 m, PUR / PVC; 2 x 0.34 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 10 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, green | setting aid: 1 x LED, red

Grado de protección

IP 67

Peso

169 g

Dimensiones

M12 x 1 / L = 40 mm
