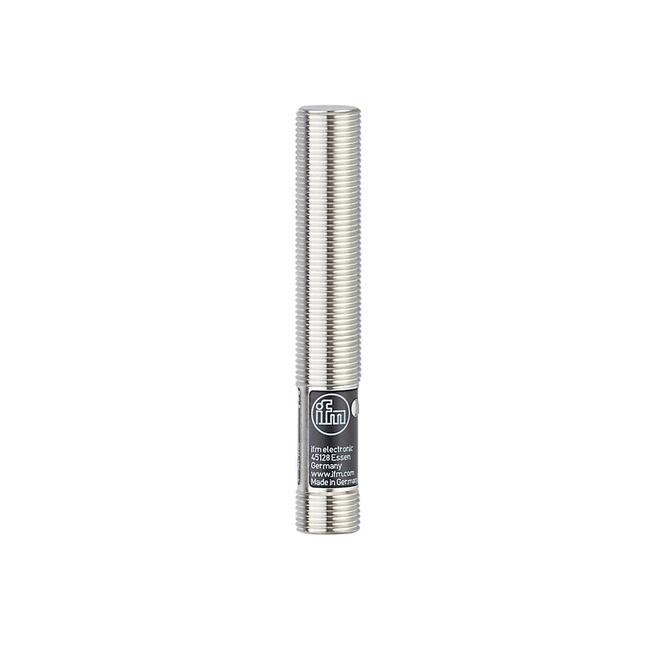

IF0299 ifm ⍾ IFA2002-ABOW/SL/BS-400B RT

Inductive sensor; Frequency AC [Hz] : 45...65; Operating voltage [V] : 20...250 AC; Protection class : I; Reverse polarity protection : no; Output function : normally open; Max. voltage drop switching output AC [V] : 8.5; Minimum load current [mA] : 8; Max. leakage current [mA] : 1.7; Permanent current rating of switching output AC [mA] : 200; (250 (...50 °C)); Short-time current rating of switching output [mA] : 900; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Short-circuit proof : no; Overload protection : no; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.62; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : Housing: brass white bronze coated; sensing face: PBT-GF30 natural; Nuts: brass white bronze coated; LED-Fenster: PBT natural; Tightening torque [Nm] : A = 3 mm: 3,5 Nm; B: 7 Nm; Required protection : miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 20 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, red

Grado de protección

IP 67

Peso

34.4 g

Dimensiones

M12 x 1 / L = 77 mm
