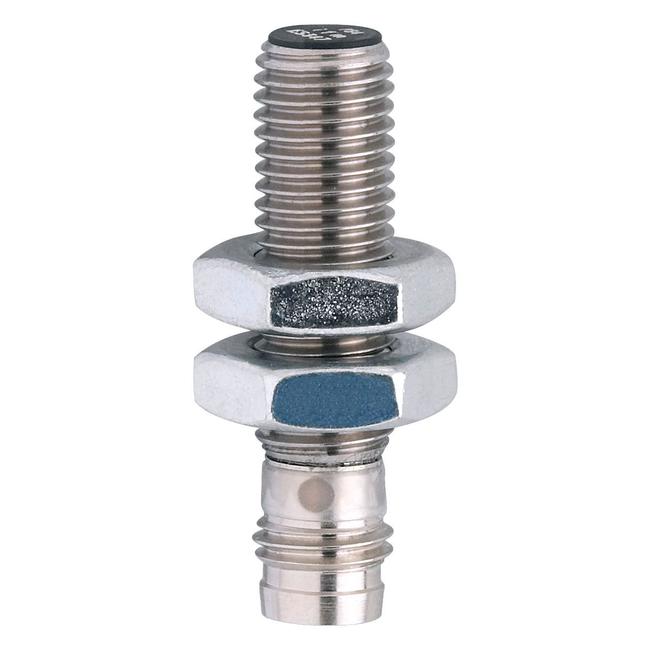

IE5412 ifm ⍾ IEB31,5-BPKG/AS-514-TPS

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 3000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : no; Sensing range [mm] : 1.5; Real sensing range Sr [mm] : 1.5 ± 10 %; Operating distance [mm] : 0...1.2; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : < 15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M8 x 1; Materials : housing: stainless steel; sensing face: PA; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Connector: 1 x M8

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 9 mA

Suministro de voltaje

24 V

Mostrar

switching status: 4 x 90° LED, yellow

Grado de protección

IP 68

Peso

20.5 g

Dimensiones

M8 x 1 / L = 30 mm
