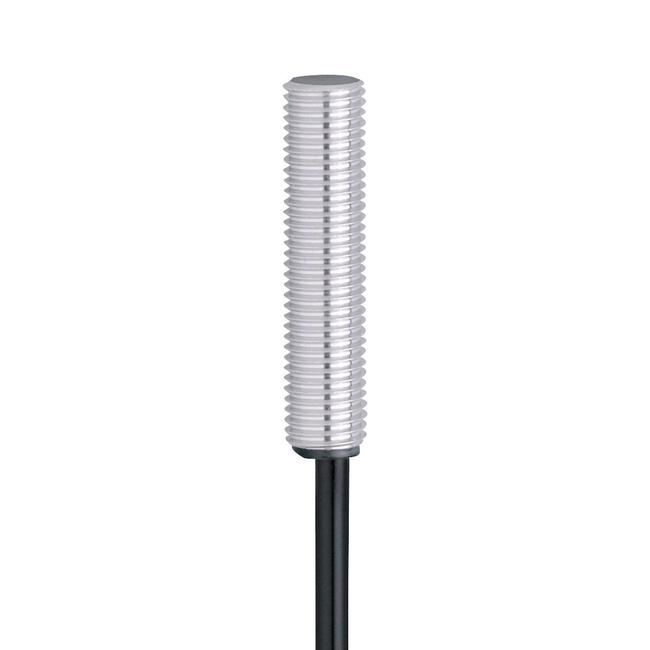

IE5343 ifm ⍾ IEBC003BASKG

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 2.8; Minimum load current [mA] : 2; (only in 2-wire operation); Max. leakage current [mA] : 0.5; (only in 2-wire operation); Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 3; Operating distance [mm] : 0...2.4; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Ambient temperature [°C] : 0...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M8 x 1; Materials : brass white bronze coated; sensing face: LCP; Tightening torque [Nm] : A = 5 mm: 1,5 Nm; B: 2 Nm; Items supplied : lock nuts: 2

Tipo

Detectores inductivos

Conexión

Cable: 2 m, PVC; 3 x 0.14 mm²

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 10; (only in 3-wire operation) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 67

Peso

51.5 g

Dimensiones

M8 x 1 / L = 37 mm
