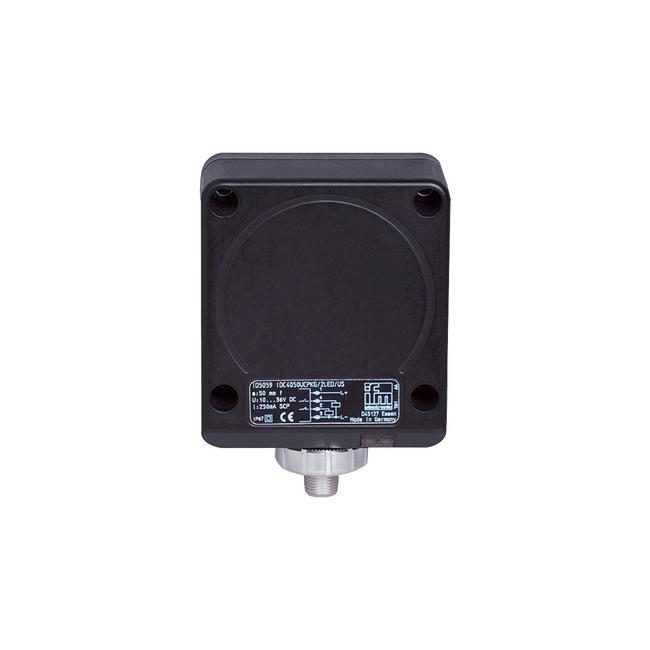

ID5059 ifm ⍾ IDC4050UCPKG/SC/2LED/US-100DPA

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : complementary; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 70; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 50; Operating distance [mm] : 0...40.5; (mounted flush with mild steel (ST37)); Correction factor : steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38; Hysteresis [% of Sr] : 3...20; Switch point drift [% of Sr] : -15...15; Ambient temperature [°C] : -25...70; Housing : rectangular; Mounting : flush mountable; Type of mounting : rail; (TH35 (EN 60715)); Materials : PPE anti-spatter; brass white bronze coated; diecast zinc; Items supplied : sealing plug: 1

Tipo

Detectores inductivos

Conexión

Connector: 1 x M12

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

20; (24 V) mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 67

Peso

422.5 g

Dimensiones

92 x 80 x 40 mm
