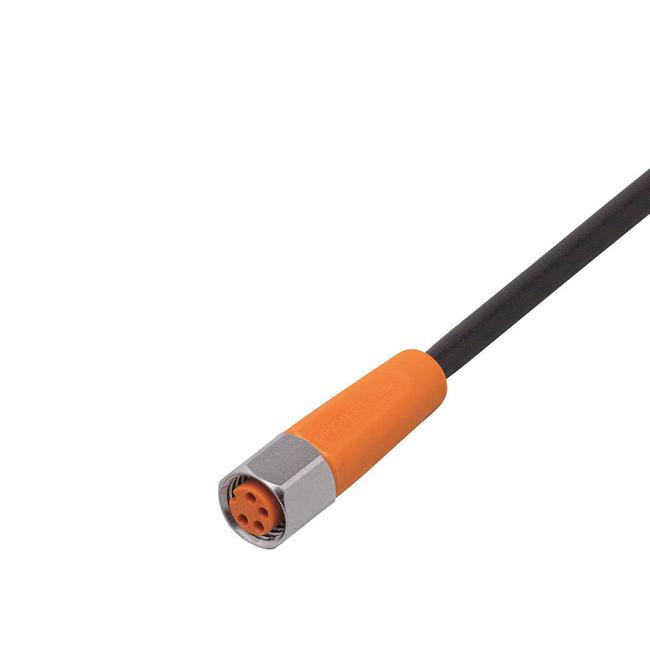

EVM028 ifm ⍾ ADOGF040VAS0002H04

Connecting cable with socket; Operating voltage [V] : < 50 AC / < 60 DC; Protection class : III; Max. current load total [A] : 3; Ambient temperature [°C] : -25...90; Note on ambient temperature : cULus: ...80 °C; Ambient temperature (moving) [°C] : -25...90; Note on ambient temperature (moving) : cULus: ...80 °C; Materials : housing: TPU orange; Sealing: FKM; Material nut : stainless steel (1.4404 / 316L); Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Cable: 2 m, PUR, Halogen-free, black, Ø 3.7 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )

Tipo

Cables de conexión con conector hembra

Conexión

Connector: 1 x M8, straight; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 60 mA

Suministro de voltaje

24 V

Mostrar

switching status: 2 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

55.6 g

Dimensiones

10 x 10 x 31 mm
