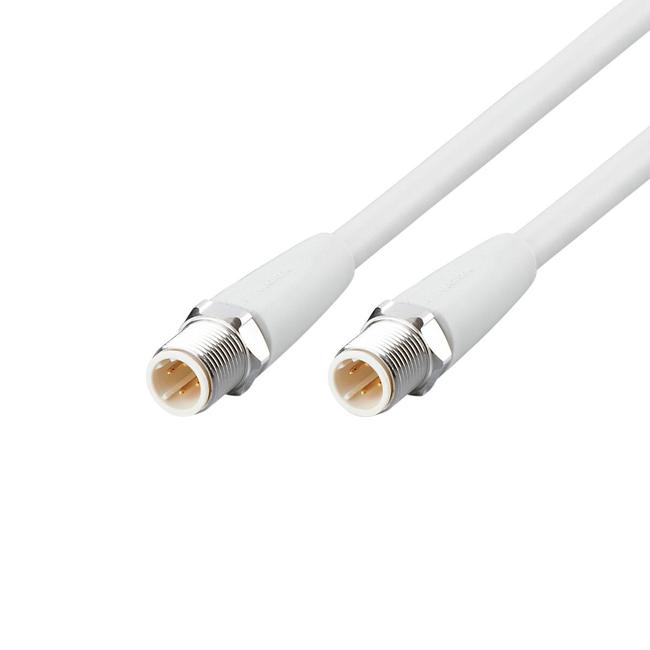

EVF534 ifm ⍾ VSTGN040VAS0020P04STGN040VAS

Connection cable; Operating voltage [V] : 30 AC / 60 DC; Protection class : III; Max. current load total [A] : 4; Overall current rating (UL) [A] : 1.66; Ambient temperature [°C] : -25...100; Note on ambient temperature : cULus: ...65 °C; Ambient temperature (moving) [°C] : 0...80; Note on ambient temperature (moving) : cULus: ...65 °C; Materials : PP Halogen-free; Moulded-body material : PP; Material nut : stainless steel (1.4404 / 316L); Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 15 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 1 Mio. | torsional strain: ± 180 °/m; Connector: 1 x M12, straight; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected

Tipo

prolongadores

Conexión

Cable: 20 m, MPPE, Halogen-free, grey, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm )

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 60 mA

Suministro de voltaje

24 V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

1293.5 g

Dimensiones

15.5 x 15.5 x 51.5 mm
