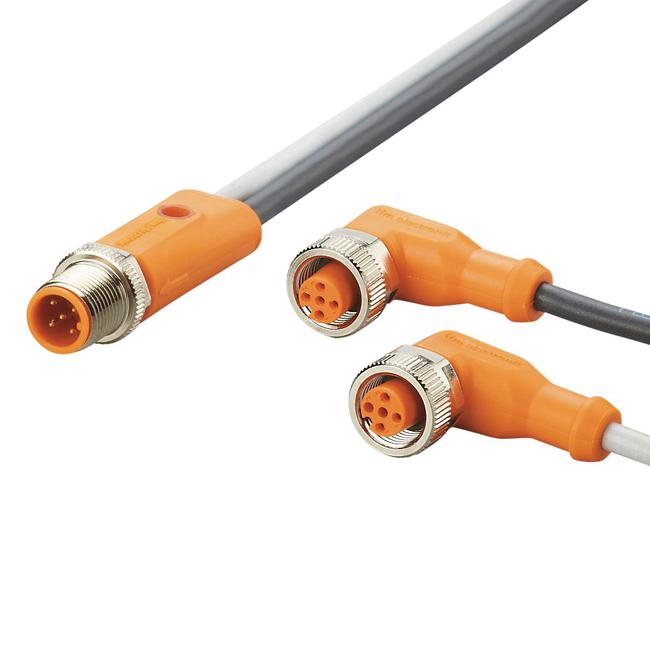

EVC503 ifm ⍾ YDOAHXX0MSS0,25HXXSTGH050MSS

Y connection cable; Operating voltage [V] : 10...30 DC; Protection class : II; Max. current load total [A] : 3; Ambient temperature [°C] : -25...90; Moulded-body material : TPU; Material nut : brass, nickel-plated; Sealing material : FKM; Number of ports splitter box : 2; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 2 Mio. | torsional strain: ± 180 °/m; Cable: 0.25 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Tipo

Cable en Y

Conexión

Connector: 1 x M8, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

Número de entradas/salidas

Number of analogue outputs: 1

Consumo actual

< 60 mA

Suministro de voltaje

24 V

Mostrar

switching status: 2 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 65; IP 67; IP 68; IP 69K

Peso

64.7 g

Dimensiones

10 x 10 x 31 mm
