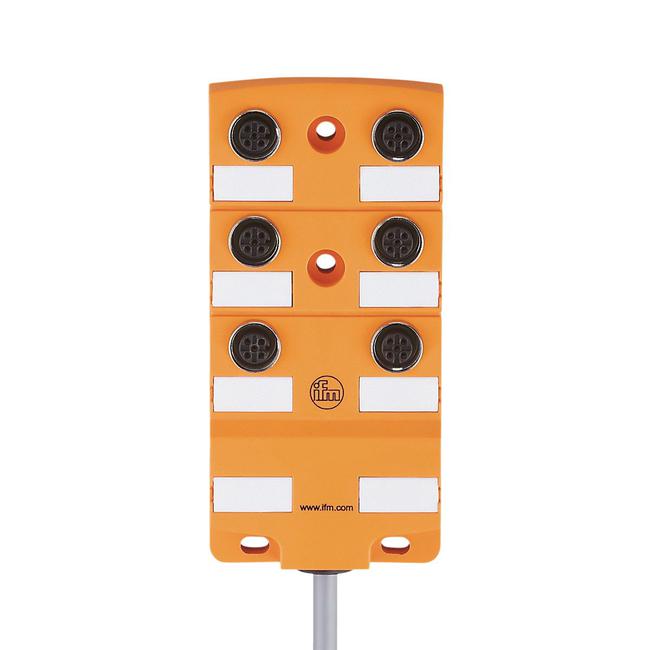

EBC043 ifm ⍾ ZDO6H050MSS0010E15

Splitter box; Operating voltage [V] : < 30 AC/DC; ("supply class 2" to cULus); Max. current load per module/slot [A] : 4; (per pin: 2; per group: 8); Max. current load total [A] : 12; Ambient temperature [°C] : -25...40; Ambient temperature (moving) [°C] : -5...60; Materials : PA; Moulded-body material : PA; Number of ports splitter box : 6; Connector type : M12; Items supplied : labels: 6; Cable: 10 m, PVC, black, Ø 6.3 mm; 5 x 0.5 mm²

Tipo

Caja repartidora

Conexión

Connector: 6 x M12; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Número de entradas/salidas

Number of analogue inputs: 1

Consumo actual

< 60 mA

Suministro de voltaje

24 V

Mostrar

switching status: 16 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 67

Peso

880 g

Dimensiones

22 x 60 x 125 mm
