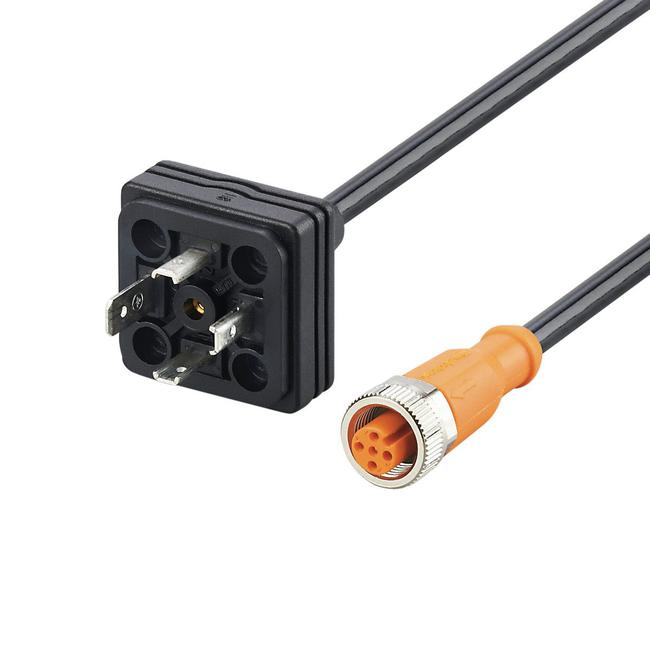

E30436 ifm ⍾ PLUG M12 - DIN VALVE FORM A

Jumper cable with valve plug; Operating voltage [V] : < 50 AC / < 60 DC; Max. current load total [A] : 4; Ambient temperature [°C] : -25...85; Moulded-body material : TPU; Material nut : brass, nickel-plated; Sealing material : FKM; Connector: 1 x valve type A DIN, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm; Connector: 1 x M12, straight; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Tightening torque: 0.6...1.5 Nm

Tipo

Prolongadores con conector para válvulas

Conexión

Cable: 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm²

Consumo actual

< 47 mA

Mostrar

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Grado de protección

IP 65

Peso

66.7 g

Dimensiones

21 x 42 x 34.44 mm
