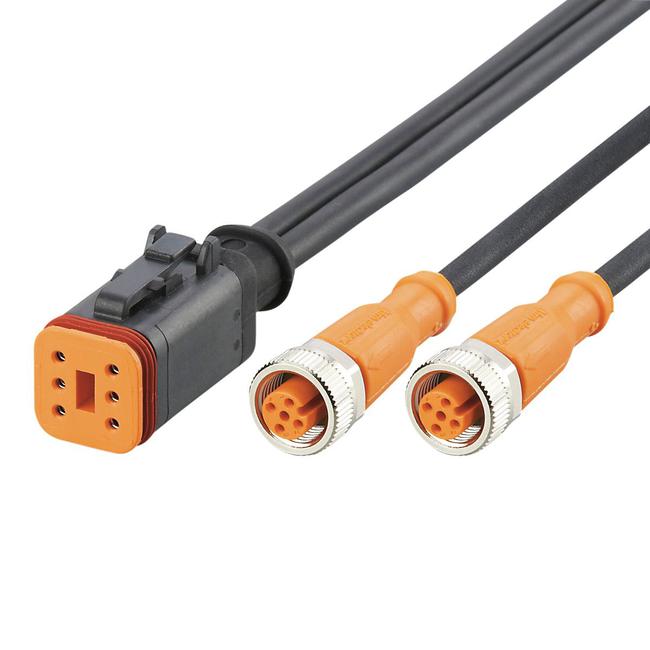

E12561 ifm ⍾ YDOGS060PLS0001H03DOGH030MSS

Y connection cable; Protection class : III; Max. current load total [A] : 4; Ambient temperature [°C] : -40...80; Ambient temperature (moving) [°C] : -20...80; Materials : PA; socket: TPU orange; Sealing: FKM; Material nut : brass, nickel-plated; Number of ports splitter box : 2; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Connector: 1 x DEUTSCH connector, straight; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm

Tipo

Cable en Y

Conexión

Cable: 1 m, PUR, Halogen-free, black, Ø 5.4 mm; 3 x 0.50 mm² (28 x Ø 0.15 mm )

Número de entradas/salidas

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Consumo actual

100 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

switching status: 2 x LED, yellow

Grado de protección

IP 67; (mating connector plugged in)

Peso

135 g

Dimensiones

24 x 24 x 54 mm
