E12068 ifm ⍾ YVDAA042--S0003A03STGH050MSS

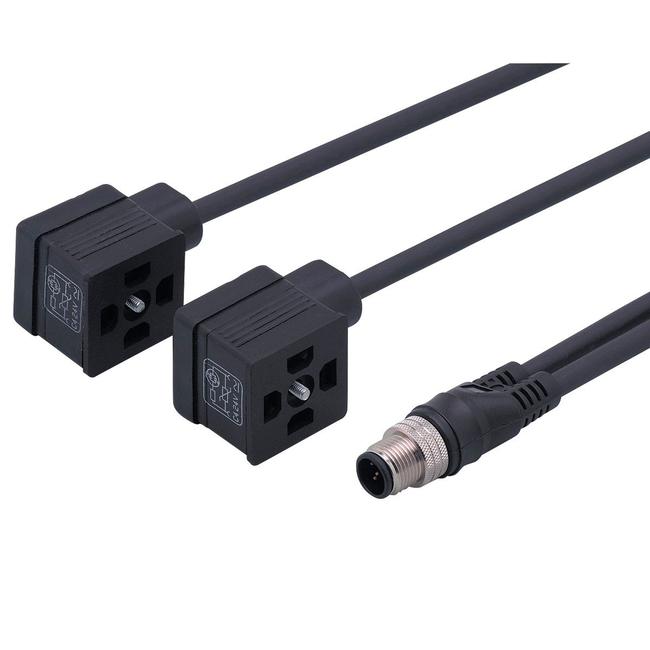

Y-jumper with valve plug; Overvoltage protection : yes; (VDR); Ambient temperature [°C] : -25...90; Materials : TPU; Moulded-body material : TPU; Material nut : brass, nickel-plated; Items supplied : screw | panel for labelling; Connector: 1 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated; Connector: 2 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated

Tipo

Cable en Y

Conexión

Cable: 3 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )

Número de entradas/salidas

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Consumo actual

100 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

switching status: 2 x LED, yellow

Grado de protección

IP 65

Peso

350.2 g

Dimensiones

6.2 x 3.3 x 9 mm
