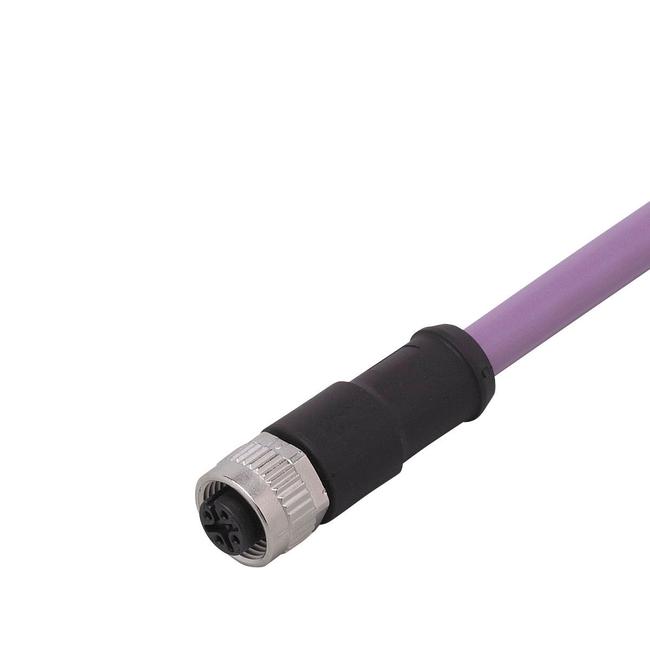

E11597 ifm ⍾ ADOGH050MSA0005C02

Connecting cable with socket; Max. current load total [A] : 4; Ambient temperature [°C] : -25...85; Storage temperature [°C] : -40...80; Materials : PUR; Moulded-body material : PUR; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | bending radius for fixed installation: min. 5 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 1 Mio.; Cable: 5 m, PUR, Halogen-free, lilac, Ø 6.8 mm, shielded; 2 x 0.25 mm² (19 x Ø 0.13 mm ) + 2 x 0.34 mm² (19 x Ø 0.16 mm ) + 1 x 0.34 mm² (19 x Ø 0.16 mm )

Tipo

Cables de conexión con conector hembra para el bus CAN

Conexión

Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

Número de entradas/salidas

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Consumo actual

100 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

switching status: 1 x LED, yellow

Grado de protección

IP 68

Peso

374.5 g

Dimensiones

14.5 x 14.5 x 43.9 mm
