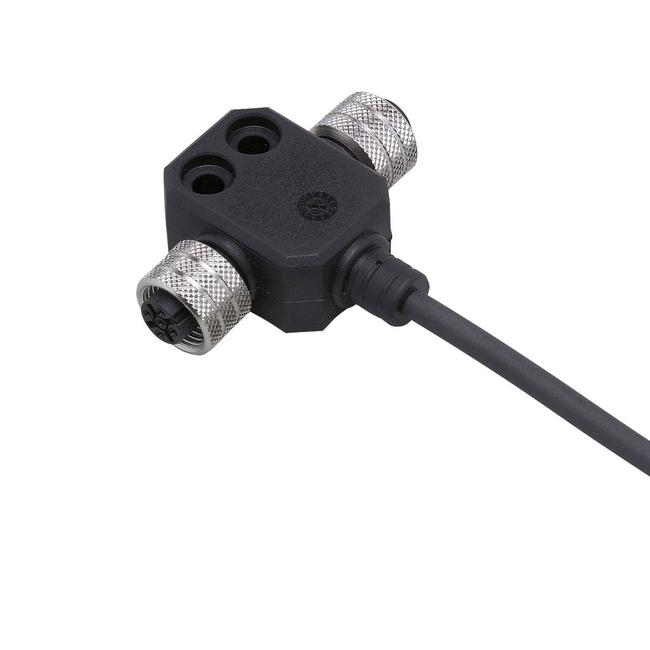

E10437 ifm ⍾ ZDO2H040MSS0005H05

Y-splitter; Max. current load per module/slot [A] : 4; Max. current load total [A] : 4; Ambient temperature [°C] : -25...80; Materials : TPU; Moulded-body material : TPU; Material nut : brass, nickel-plated; Number of ports splitter box : 2; Connector type : M12; Cable: 5 m, PUR, Halogen-free, black, Ø 5 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )

Tipo

Caja repartidora

Conexión

Connector: 2 x M12; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm

Número de entradas/salidas

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Consumo actual

100 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 67

Peso

160.7 g

Dimensiones

18 x 18 x 20 mm
