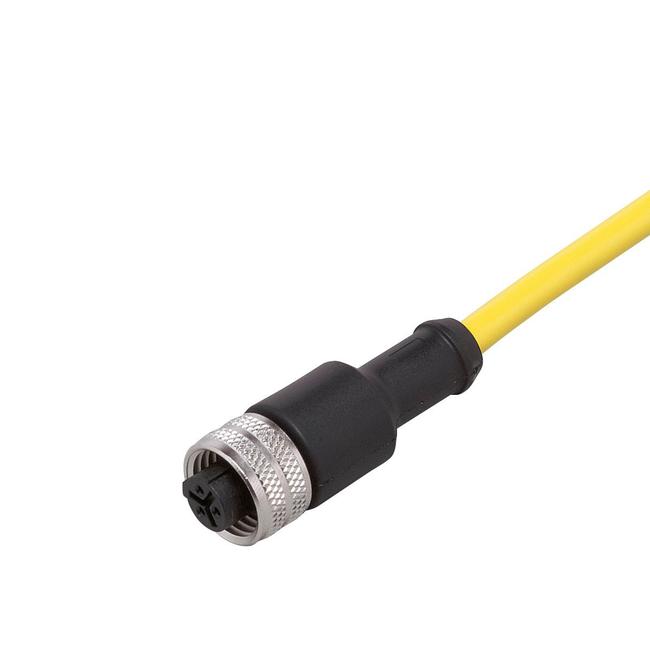

E10189 ifm ⍾ ADOGA030MSS0002E03

Connecting cable with socket; Max. current load total [A] : 4; (40° C); Ambient temperature [°C] : -25...85; Materials : TPU; Moulded-body material : TPU; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 2 Mio. | torsional strain: ± 180 °/m; Cable: 2 m, PVC, yellow, Ø 5.2 mm; 3 x (42 x Ø 0.1 mm ) / AWG 22

Tipo

Cables de conexión con conector hembra

Conexión

Connector: 1 x 1/2", straight; Moulded body: TPU; Locking: brass, nickel-plated

Número de entradas/salidas

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Consumo actual

100 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

switching status: 1 x LED, yellow | operation: 1 x LED, green

Grado de protección

IP 67

Peso

88.1 g

Dimensiones

14.5 x 14.5 x 42.5 mm
