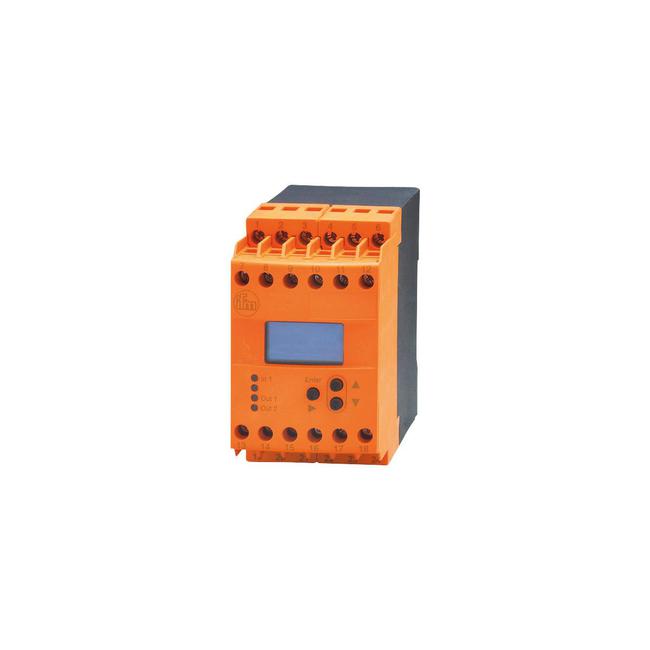

DW2503 ifm ⍾ MONITOR/FA-1 /100-240VAC/DC

Programmable frequency-to-current converter; Nominal voltage AC [V] : 110...240; Nominal voltage DC [V] : 27; Nominal voltage tolerance [%] : < 10; Nominal voltage tolerance 2 [%] : 20...10; Nominal frequency AC [Hz] : 50...60; Max. power consumption [VA] : 8; Power consumption [W] : 5; Auxiliary energy for sensors DC [V] : 19.6...27.7; (SELV, ≤ 150 mA); Number of relay outputs : 1; Contact rating : 6 A (250 V AC); B300, R300; Number of analogue outputs : 1; Analogue current output [mA] : 4...20; Max. load [Ω] : 500; Analogue voltage output [V] : 0...10; Min. load resistance [Ω] : 10000; Setting range Hz [Hz] : 0...10000; Setting range [Imp/min] : 0...600000; Ambient temperature [°C] : -40...60; Storage temperature [°C] : -40...85; Max. relative air humidity [%] : 80; (40 °C: 50 %); Protection rating terminals : IP 20; Housing : housing for DIN rail mounting; Materials : plastics; dual-chamber terminals: 2 x ...2.5 mm²; AWG 14

Tipo

Sistemas para conversión de señales

Conexión

Connector: M12

Número de entradas/salidas

Number of analogue outputs: 1; Number of relay outputs: 1

Consumo actual

< 200 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

OLED display, 128 x 64 pixels luminous | switching status: LED, green

Grado de protección

IP 50

Peso

380.5 g

Dimensiones

78 x 45 x 124.7 mm
