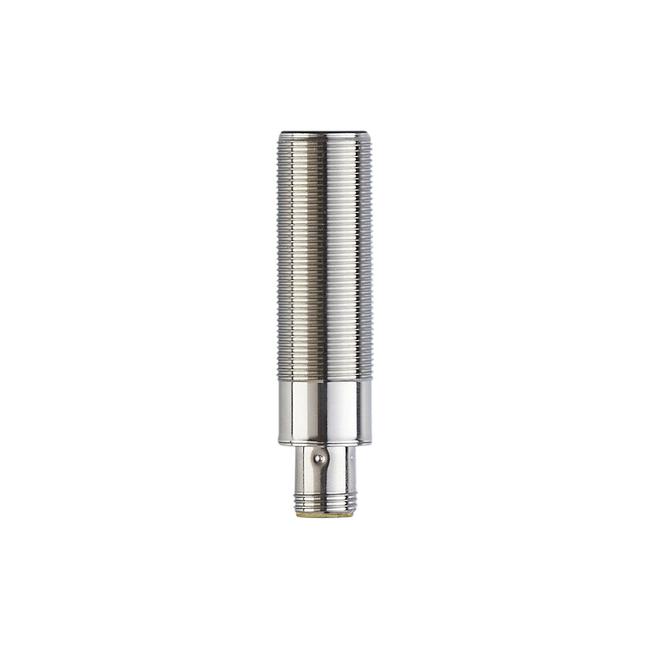

DTM426 ifm ⍾ DTMHF GBRWCJUS03

RFID read/write head with CAN interface and SAE J 1939 protocol; Protection class : III; Operating frequency [MHz] : 13,56; RFID standard : ISO 15693; Distance write/read head front [mm] : 100; Distance write/read head side [mm] : 50; Distance to the ID tag [mm] : ≤ 18; Communication interface : CAN; Protocol : J1939; Ambient temperature [°C] : -40...85; Storage temperature [°C] : -40...85; Housing : threaded type; Thread designation : M18 x 1; Materials : housing: stainless steel; Protective cover: PPS; LED window: PEI; Connector: 1 x M12

Tipo

RFID para aplicaciones móviles

Conexión

Connector: 1 x M12, rotatable

Número de entradas/salidas

Number of digital outputs: 4

Consumo actual

< 50 (24 V) / < 80 (12 V) mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

operation: 1 x LED, green | CAN communication: 1 x LED, red | tag communication: 1 x LED, yellow

Grado de protección

IP 67; IP 69K

Peso

144.5 g

Dimensiones

M18 x 1 / L = 70 mm
