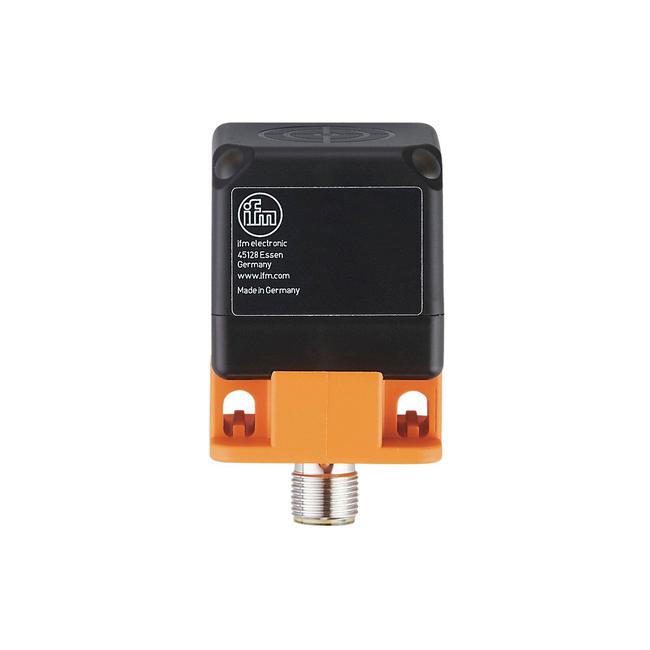

DTA201 ifm ⍾ DTSLF MCROASUS01

RFID read head with AS-Interface; Protection class : III; Operating frequency [MHz] : 0,125; Electrical design : AS-i; Travel speed [m/s] : < 0.5; Distance read/read head front : 150; Distance read/read head side : 150; Note on distance read/read head : referred to: : | Read/write head: DTA200 | Read head: DTA201; Distance write/read head front [mm] : 300; Distance write/read head side [mm] : 300; Note on distance write/read head : referred to: : | Read/write head: DTA200 | Read head: DTA201; Distance to the ID tag [mm] : read: :: ≤ 55 | static; Communication interface : AS-i; Ambient temperature [°C] : -20...60; Storage temperature [°C] : -25...80; Housing : rectangular; Sensing face : 5 positions selectable; Materials : PA

Tipo

Sistemas y sensores AS-Interface

Conexión

Connector: 1 x M12, rotatable, locking

Número de entradas/salidas

Number of relay outputs: 2

Consumo actual

< 75 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

Operating voltage: 1 x LED, green | tag communication: 1 x LED, yellow | error AS-i data communication: 1 x LED, red

Grado de protección

IP 67; IP 69K

Peso

222.5 g

Dimensiones

40 x 40 x 54 mm
