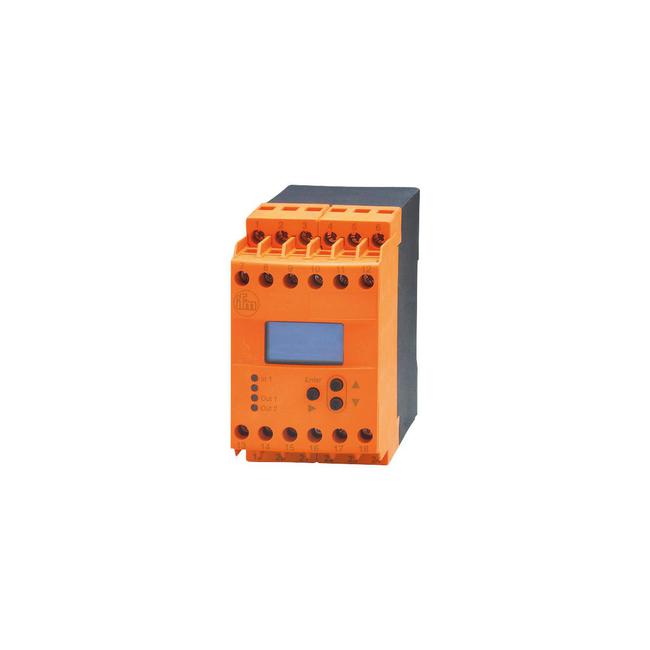

DR2505 ifm ⍾ MONITOR/FD-2 /110-240VAC/DC

Evaluation unit for direction and speed monitoring; Nominal voltage AC [V] : 110...240; Nominal voltage DC [V] : 27; Nominal voltage tolerance [%] : < 10; Nominal voltage tolerance 2 [%] : 20...10; Nominal frequency AC [Hz] : 50...60; Power consumption [W] : 3; Auxiliary energy for sensors DC [V] : 19.6...27.7; (SELV, ≤ 150 mA); Number of relay outputs : 2; Contact rating : 6 A (250 V AC); B300, R300; Ambient temperature [°C] : -40...60; Storage temperature [°C] : -40...85; Max. relative air humidity [%] : 80; (40 °C: 50 %); Protection rating terminals : IP 20; Housing : housing for DIN rail mounting; Materials : plastics; dual-chamber terminals: 2 x ...2.5 mm²; AWG 14

Tipo

Sistemas para evaluación de impulsos

Conexión

Connector: M12

Número de entradas/salidas

Number of relay outputs: 2

Consumo actual

30...830; (24 V DC, full load) mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

OLED display, 128 x 64 pixels luminous | switching status: LED, green

Grado de protección

IP 50

Peso

379.5 g

Dimensiones

78 x 45 x 124.7 mm
