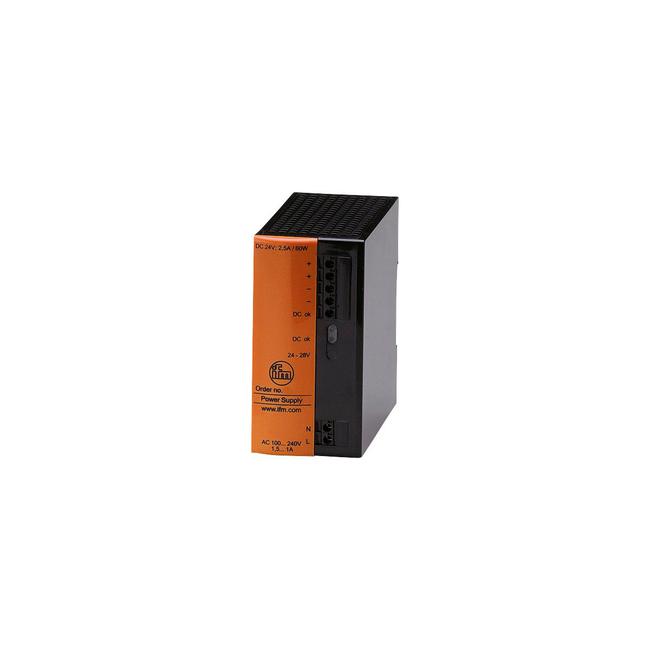

DN1031 ifm ⍾ PSU-1AC/24VDC-2,5A

Switched-mode power supply 24 V DC; Operating voltage tolerance [%] : 10; Nominal voltage AC [V] : < 230; Nominal frequency AC [Hz] : 47...63; Input voltage range AC [V] : 100...240; Output voltage DC [V] : 24...28; Protection class : II; (IEC 61140); Max. power-on delay time [ms] : 380; Power-on delay time [s] : < 380; Output voltage [V] : adjustable; Max. output current at min. output voltage [A] : 2.5; Number of output circuits : 1; Max. residual ripple [mV] : 50; Efficiency (nominal voltage 230 V AC / 50 Hz) [%] : 88; External input protection : 10 A; B; Derating [W/K] : 2% / K (> 60° C); Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] : 90; Short-circuit proof : yes; Overload protection : yes; Reliability of the DC OK signal : 24 V DC (30 mA); Ambient temperature [°C] : 0...70; Type of mounting : rail; (TH35 (EN 60715); free space for convection cooling 30 mm); Materials : PC ABS

Tipo

Fuentes de alimentación

Conexión

cage clamps:

Número de entradas/salidas

Number of relay outputs: 2

Consumo actual

< 15 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

DC ok: 1 x LED, green

Grado de protección

IP 20

Peso

335 g

Dimensiones

90 x 45 x 100 mm
