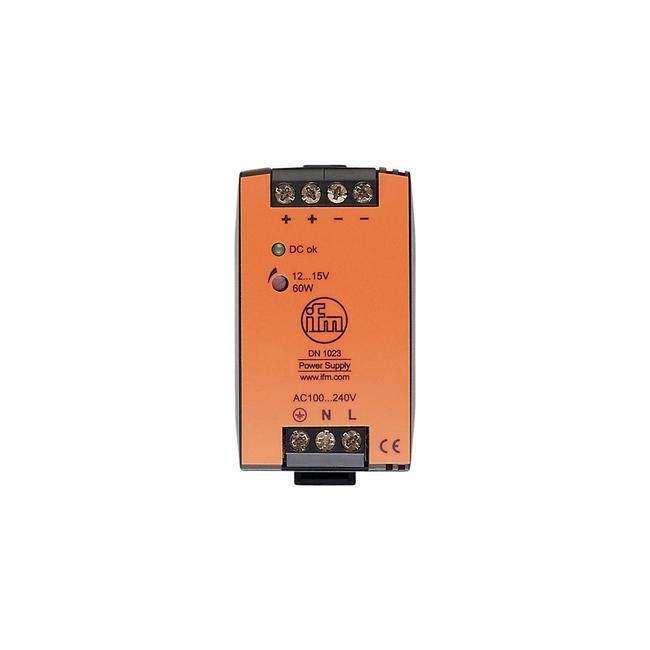

DN1023 ifm ⍾ PSU-1AC/12VDC-4.5A

Switched-mode power supply 12 V DC; Nominal voltage AC [V] : 100...240; Nominal frequency AC [Hz] : 50...60; Input voltage range AC [V] : 85...264; Output voltage DC [V] : 12...15; Protection class : I; Output voltage [V] : adjustable; Output voltage tolerance [%] : 2; Max. output current at min. output voltage [A] : 4.5; Max. output current at max. output voltage [A] : 3.6; Number of output circuits : 1; Max. residual ripple [mV] : 50; Efficiency (nominal voltage 230 V AC / 50 Hz) [%] : 87.2; Derating [W/K] : 1.4 (60...70 °C); Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] : 113; Short-circuit protection : yes; Overload protection : yes; Ambient temperature [°C] : -10...70; Type of mounting : rail; (TH35 (EN 60715)); Materials : PC

Tipo

Fuentes de alimentación

Conexión

screw terminals: ...6 mm²

Número de entradas/salidas

Number of relay outputs: 2

Consumo actual

< 15 mA

Suministro de voltaje

20...30; (via flat cable) V

Mostrar

function: LED, green

Grado de protección

IP 20

Peso

320 g

Dimensiones

83 x 45 x 96 mm
