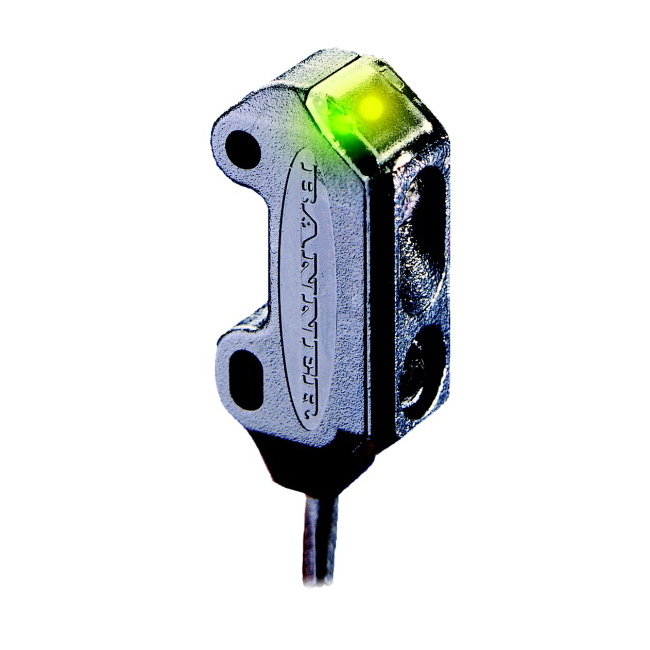

VS1AP5C20 BANNER ⍾ 55299

VS1 Series Mini Self-Contained Convergent-Mode Sensor; VS1 Series: Infrared Convergent Focal Point: 20 mm; Input: 12-24V dc Output: Complementary PNP Light Operate 2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 20; Outputs : PNP; Quick Disconnect Type : No QD; Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 865; Repeatability (µs) : 250; Number of Pins : 3; NEMA Rating : NEMA 3; Max Op. Relative Humidity [%] : 80% @ 50°C

Tipo

VS1

Material de la lente

Acrylic

Haz sensor

Infrared LED

Conexión

Cable

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP54
