TM18VP6LPQ8 BANNER ⍾ 42005

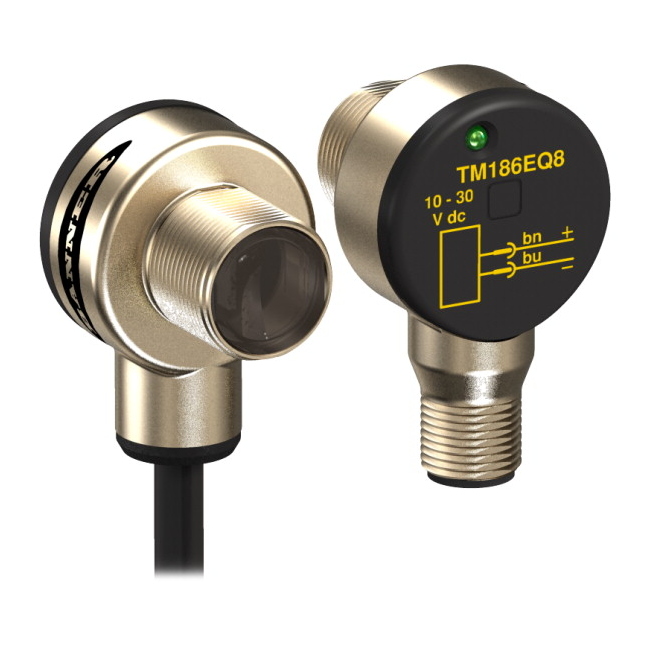

TM18 Series Heavy-Duty Metal Right Angle Sensors; EZ BEAM TM18: Polarized Retroreflective Range: 5.5m; Input:10-30V dc Outputs: PNP Complementary ; EURO-Style Quick-Disconnect Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Zinc Die-Cast with Nickel-Plating; Input/Output : Discrete; Max Sensing Distance (mm) : 5500; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 585; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Tipo

TM18

Conexión

Integral QD

Tiempo de respuesta típico

100 ms

Grado de protección

IP67, IP69
