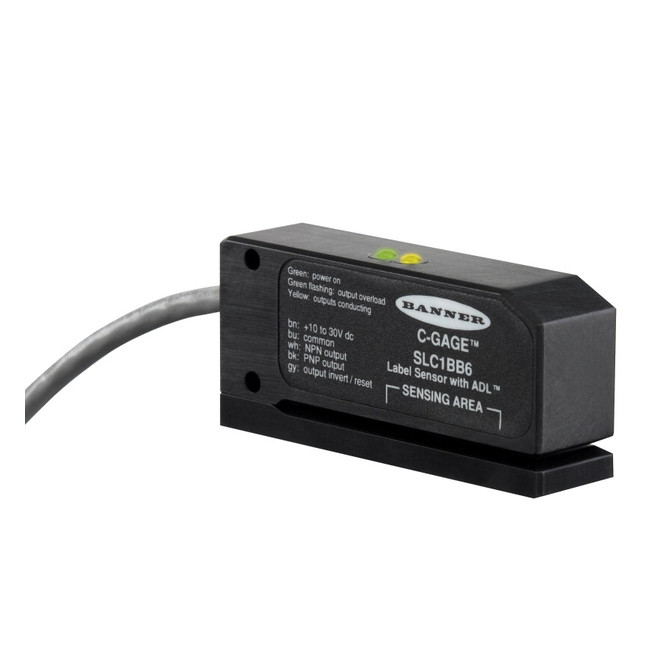

SLC1BB6 BANNER ⍾ 56177

SLC1 Series Capacitive Label Sensor; SLC1 Series: Label Sensor Slot width: 1 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (Detailed) : Capacitive; Housing Style : Label; Primary Housing Material : Aluminum; Max Sensing Range (mm) : 1; Slot Depth/Array Length (mm) : 68.8; Quick Disconnect Type : No QD; Outputs : Bipolar (NPN & PNP); Slot Overall Depth (mm) : 40.8; Slot Overall Depth (mm) : 88.9; Number of Pins : 5; Output response time (ms) : 0.1; Operation : Light/Dark Operate; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : 5; Max Op. Relative Humidity (%) : 90% @ 50°C; NEMA Rating : NEMA 6

Tipo

SLC1 Series Capacitive Label Sensor

Conexión

Cable

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67
