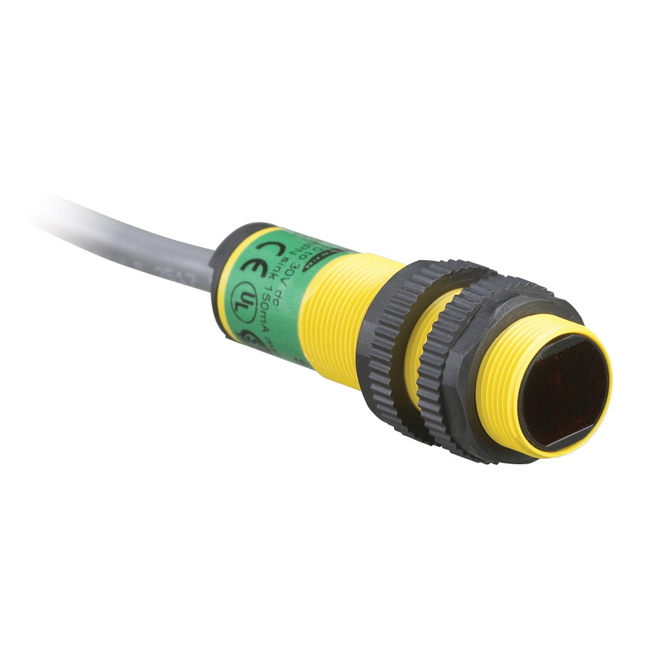

S18SN6D BANNER ⍾ 29407

S18 Series Epoxy Encapsulated Barrel-Mount Sensor; EZ-BEAM S18 Series: Diffuse Range: 100 mm; Input: 10-30 V dc Output: Complementary NPN2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 100; Outputs : NPN; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Health/ Marginal Signal Output : Yes

Tipo

S18

Material de la lente

Acrylic

Haz sensor

Infrared LED

Conexión

Cable

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67, IP69
