S186EQ BANNER ⍾ 29507

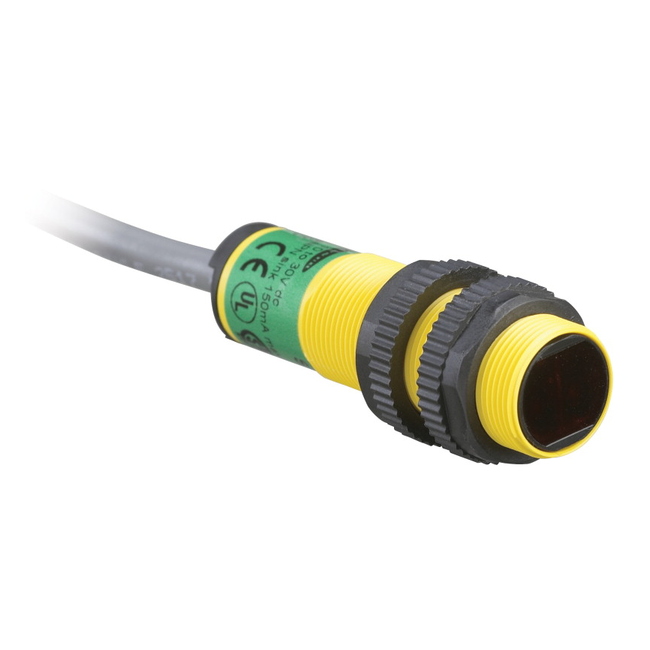

S18 Series Epoxy Encapsulated Barrel-Mount Sensor; EZ-BEAM S18 Series: Emitter Range: 20 m; Input: 10-30 V dc Output: Not applicable - No outputs Euro M12 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 375; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Quick Disconnect : Yes

Tipo

S18

Material de la lente

Polycarbonate

Haz sensor

Infrared LED

Conexión

Integral QD

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67, IP69
