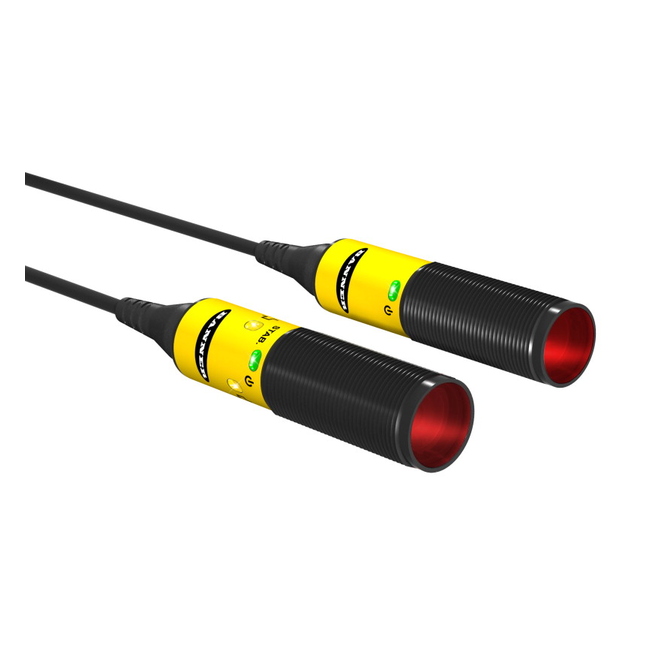

S18-2VPLPC-Q3 BANNER ⍾ 86565

S18-2 Series Cost Effective Plastic 18 mm Barrel; S18-2 Series: Polarized Retroreflective with pot Range: variable to 6 m; Input: 10-30 V dc Outputs: complementary PNPConnection: Pico M8 4-pin 150 mm PVC Pigtail; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 6000; Quick Disconnect Type : M8 (Pico); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5; Sensing Beam Wavelength : 624; Repeatability (µs) : 100; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Feature: Ecolab Certified : Yes; Feature: Quick Disconnect : Yes

Tipo

S18-2

Material de la lente

Acrylic

Haz sensor

Visible Red LED

Tiempo de respuesta típico

100 ms

Tipo de fuente de alimentación

DC

Fuente de alimentación

10-30 V dc

Indicador

LEDs

Grado de protección

IP67
